Understanding the different fire extinguisher types could mean the difference between a minor incident and a major disaster. The six main types of fire extinguishers are

1. Water

2. Foam

3. Dry powder (ABC)

4. Carbon dioxide (CO2)

5. Wet chemical, and

6. Class D extinguishers

Each type is designed for specific fire classes such as electrical, flammable liquids, or cooking oils, and using the wrong one can be dangerous.

This comprehensive guide will walk you through each fire extinguisher type, explain their specific uses with real-world scenarios, and help you choose the right protection for your home, workplace, or specialized industrial application.

Before exploring extinguisher types, it is essential to understand the fire classes they are designed to combat. The table below provides a quick reference for the six main fire extinguisher types and uses.

Quick Comparison Table of Fire Extinguisher Types

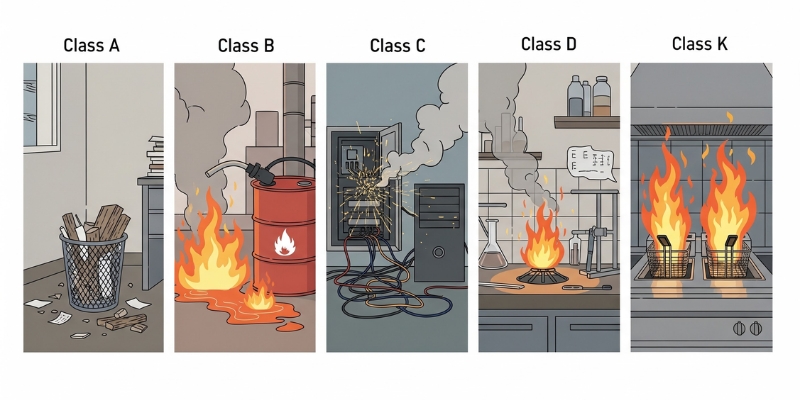

What Are Fire Classes?

To properly understand fire extinguisher types, you must first understand the classes of fire they are designed to fight. Fires are classified based on the fuel source involved.

Fire Classes Explained Simply

1. Class A Fires: Involve ordinary combustible materials such as wood, paper, cloth, textiles, and plastics. These are the most common types of fires found in homes and offices.

2. Class B Fires: Involve flammable liquids and gases, including gasoline, oil, grease (not cooking oils), alcohol, solvents, and paint.

3. Class C Fires: Involve energized electrical equipment, such as overheating wiring, fuse boxes, computers, copiers, and appliances. The danger here is electrical shock if a conductive extinguishing agent is used.

4. Class D Fires: Involve combustible metals like magnesium, titanium, sodium, lithium, and potassium. These are rare but extremely hazardous and typically found in laboratories or industrial settings.

5. Class K Fires: Specifically involve cooking oils and fats, typically in commercial kitchen appliances like deep fat fryers. These fires burn at extremely high temperatures and require special suppression agents.

Understanding these classes is the foundation for selecting the correct fire extinguisher types and uses for your specific environment.

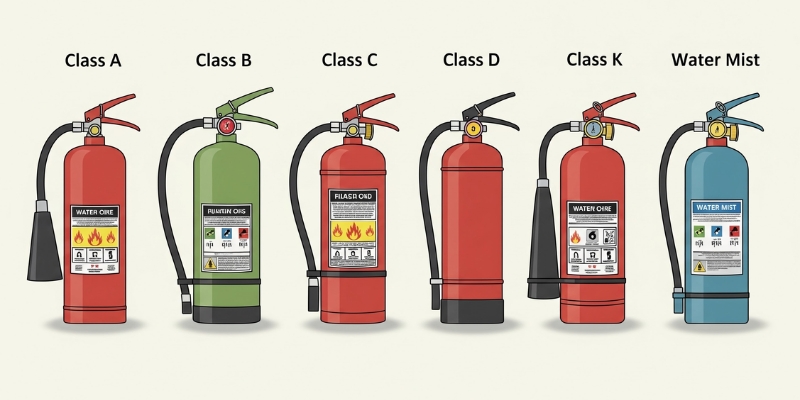

The 6 Main Types of Fire Extinguishers

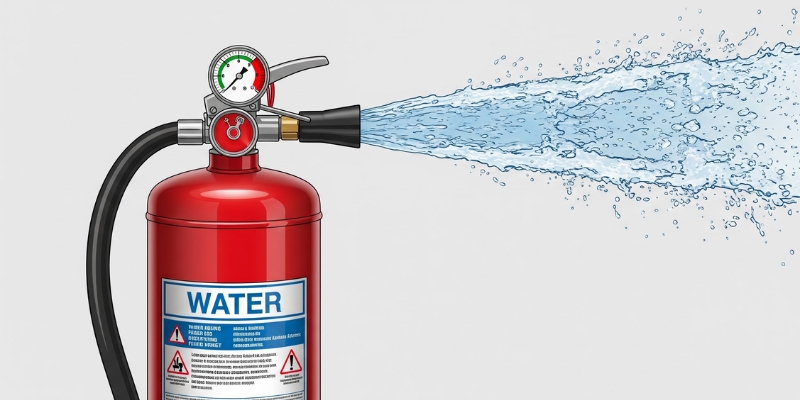

Water Fire Extinguisher

Water fire extinguishers are one of the most common and oldest fire extinguisher types. They contain pressurized water and are typically identified by their red body and all-red label or red body with a red band.

Fire Classes It Works On

Water extinguishers are designed exclusively for Class A fires involving solid combustibles like wood, paper, and textiles.

Best Used For

They are ideal for offices, schools, hospitals, warehouses, and any environment where materials like wood, paper, and fabric are the primary fire risks.

Real Life Example Scenario

Imagine a wastepaper basket in an office catches fire after someone disposes of a smoldering cigarette butt. The flames are contained to paper materials only.

A staff member grabs the nearby water extinguisher, aims at the base of the fire, and extinguishes it completely within seconds with no residue cleanup required.

When NOT to Use It

Never use a water extinguisher on electrical fires (Class C) as water conducts electricity, creating a severe shock hazard.

Additionally, do not use water on flammable liquid fires (Class B) as it can spread the burning liquid or cause it to float and spread. Water is also ineffective on cooking oil fires (Class K).

How It Works

Water extinguishers work by cooling the burning material below its ignition temperature, removing the heat element from the fire triangle.

Visual Identifier

Red label or band marked "Water".

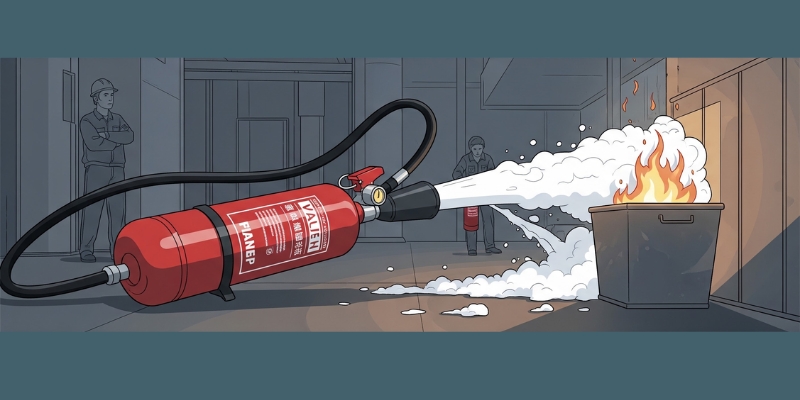

Foam Fire Extinguisher

Foam extinguishers, typically AFFF (Aqueous Film Forming Foam), contain a mixture of water and foam concentrate that expands when discharged.

Fire Classes It Works On

Foam extinguishers are effective on Class A (solid combustibles) and Class B (flammable liquids) fires.

Best Used For

They are excellent for environments where both solid materials and flammable liquids are present, such as garages, workshops, fuel storage areas, and some industrial settings.

Real Life Example Scenario

A small gasoline spill in a workshop is accidentally ignited by a pilot light. The fire involves both the liquid fuel and nearby wooden shelving.

A worker grabs the foam extinguisher, which blankets the liquid fuel with a film that seals the surface while also cooling the burning wood, successfully extinguishing both fire types.

When NOT to Use It

Do not use foam extinguishers on electrical equipment fires unless they are specifically tested and labeled as safe (dielectric tested). They are also unsuitable for metal fires.

How It Works

Foam extinguishers work by forming a film on the surface of flammable liquids, sealing vapors and suppressing the fire. The water content also provides cooling for Class A materials.

Visual Identifier

Cream or blue label (depending on region) marked "Foam".

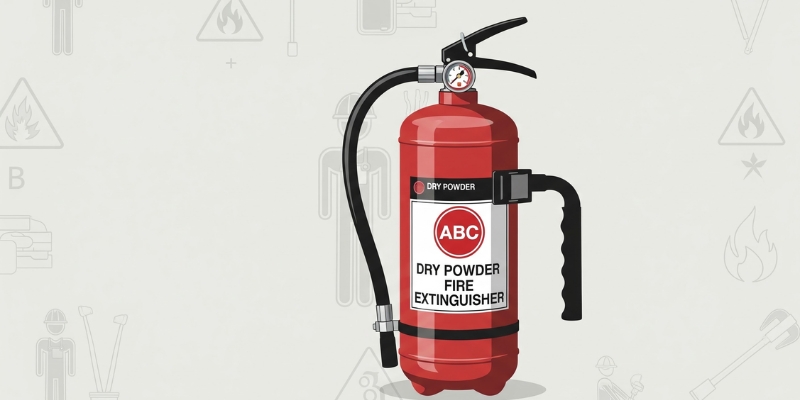

Dry Powder (ABC) Fire Extinguisher

Dry powder extinguishers, often labeled as ABC or BC, contain a fine powder (usually monoammonium phosphate or sodium bicarbonate) that interrupts the chemical reaction of fire. These are the most versatile of all fire extinguisher types.

Fire Classes It Works On

ABC powder extinguishers work on Class A (solids), Class B (flammable liquids), and Class C (flammable gases) fires, as well as electrical equipment fires. BC powder extinguishers are suitable for Class B and C only.

Best Used For

These are the recommended types of fire extinguishers for homes, vehicles, caravans, boats, and garages where multiple fire risks exist. They provide broad-spectrum protection in a single unit.

Real Life Example Scenario

A family car develops an electrical fault that ignites upholstery (Class A) and also involves a small amount of fuel (Class B).

The driver has an ABC dry powder extinguisher mounted in the vehicle. One extinguisher handles both hazards effectively, preventing what could have been a total vehicle loss.

When NOT to Use It

Avoid using powder extinguishers indoors in occupied spaces if possible. The discharge creates a dense cloud that reduces visibility to zero almost instantly and can cause severe breathing difficulties, particularly for those with respiratory conditions.

The corrosive powder penetrates electronics, settles into surfaces, and can cause ongoing damage long after the fire is out. Cleanup is extensive and often requires replacement of affected electronics.

How It Works

The powder interrupts the chemical chain reaction of the fire tetrahedron, effectively "knocking out" the flames at a molecular level. Some formulations also melt to form a coating on Class A materials.

Visual Identifier

Blue label marked "Powder" or "ABC Powder".

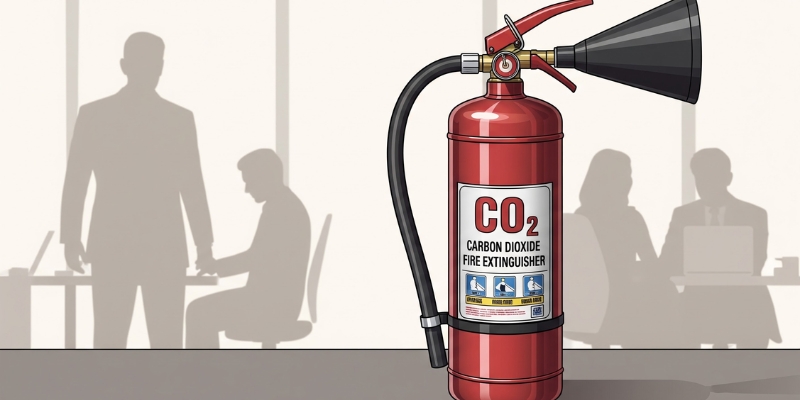

CO2 (Carbon Dioxide) Fire Extinguisher

CO2 extinguishers contain carbon dioxide gas stored under extreme pressure as a liquid. When discharged, it expands rapidly into a cold gas/snow mixture. These are specialized fire extinguisher types for electrical and liquid fires.

Fire Classes It Works On

CO2 extinguishers are effective on Class B (flammable liquids) and Class C (energized electrical equipment) fires.

Best Used For

They are the preferred choice for server rooms, data centers, laboratories, electrical control rooms, and any area with sensitive electronic equipment. CO2 leaves no residue, making it ideal for protecting expensive electronics.

Real Life Example Scenario

A server room experiences an electrical fire in a UPS unit. The equipment is live and highly sensitive.

A technician uses the CO2 extinguisher, which discharges clean gas that extinguishes the fire without damaging any of the surrounding servers. After ventilation, the equipment can be inspected and potentially returned to service with minimal downtime.

When NOT to Use It

CO2 extinguishers are ineffective on Class A fires (wood, paper, textiles) as the gas disperses too quickly and provides no cooling for deep-seated materials.

They have very limited range (typically 3 to 8 feet). In confined spaces, CO2 discharge poses an asphyxiation risk as it displaces oxygen. The horn becomes extremely cold (-70°C) and can cause frostbite if touched.

How It Works

CO2 extinguishes fire by displacing oxygen around the flame (smothering) and providing some cooling effect through the cold discharge.

Visual Identifier

Black label or band marked "CO2" or "Carbon Dioxide". CO2 extinguishers often have a distinctive large horn-shaped nozzle and no pressure gauge (pressure is determined by weight).

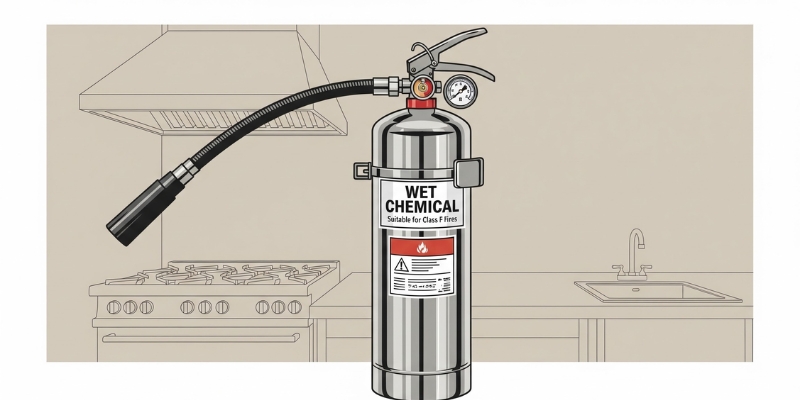

Wet Chemical Extinguisher

Wet chemical extinguishers contain a specially blended potassium-based solution (potassium acetate, carbonate, or citrate) designed specifically for high-temperature cooking oil fires. These are specialized fire extinguisher types for commercial kitchens.

Fire Classes It Works On

Wet chemical extinguishers are primarily designed for Class F (cooking oils and fats) fires. Most models are also effective on Class A fires.

Best Used For

They are essential in commercial kitchens, restaurants, catering facilities, and any location with deep fat fryers or large-scale cooking oil use.

Real Life Example Scenario

In a busy restaurant kitchen, a deep fat fryer overheats and the oil ignites. The flames are intense and reaching for the ventilation hood. A cook grabs the wet chemical extinguisher, activates it, and sprays the fine mist onto the burning oil.

The chemical reacts with the oil to create a foam-like blanket that seals the surface and cools the oil below its ignition point, preventing reignition.

When NOT to Use It

Wet chemical extinguishers are not suitable for flammable liquid fires (Class B) outside of cooking oils, gas fires (Class C), or electrical equipment fires above low voltage unless specifically tested.

How It Works

The wet chemical agent is discharged as a fine mist. When it contacts the hot cooking oil, it undergoes saponification, a chemical reaction that turns the oil surface into a non-combustible soap-like foam blanket.

This seals the surface and prevents reignition while the water content provides cooling.

Visual Identifier

Yellow label marked "Wet Chemical". Often found in stainless steel cylinders in commercial kitchens.

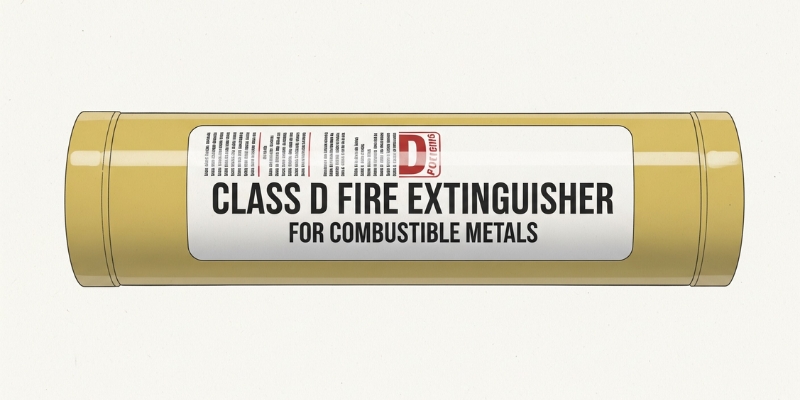

Class D Fire Extinguisher

Class D extinguishers contain a specialized dry powder agent designed for specific combustible metal fires. Unlike ABC powder, Class D fire extinguisher agents are tailored to individual metals or metal groups.

Fire Classes It Works On

Class D extinguishers are designed exclusively for Class D fires involving combustible metals such as magnesium, titanium, sodium, potassium, lithium, and zirconium.

Best Used For

They are found in laboratories, machine shops working with exotic metals, chemical plants, and industrial facilities where combustible metals are present.

Real Life Example Scenario

In a metallurgy laboratory, a sample of magnesium chips accidentally ignites. The fire burns intensely and cannot be extinguished with water or standard extinguishers. The lab technician retrieves the Class D extinguisher specifically designated for magnesium fires.

Standing at a safe distance, they gently apply the powder in a "raining down" motion, which forms a crust over the burning metal, smothering the fire and preventing the molten metal from spreading.

When NOT to Use It

Class D extinguishers are metal-specific and will not work on all metal fires. Using the wrong Class D agent can actually make the fire worse. They are completely ineffective on any other fire class.

How It Works

Class D extinguishers work by applying the powder gently (often via a specialized applicator or "shovel" nozzle) to "rain" the agent onto the burning metal. The agent melts and forms a crust that smothers the fire, absorbs heat, and excludes oxygen.

Visual Identifier

Yellow label marked with the specific metal or "Class D". Often have distinctive applicators or hoses for gentle application.

ABC vs CO2 vs Powder: Which Fire Extinguisher Is Best?

Choosing between the various fire extinguisher types requires understanding their pros and cons in specific contexts. The table below compares the most common options.

How to Choose the Right Fire Extinguisher

Selecting the correct fire extinguisher types for your specific environment is critical for effective fire protection. Here is how to choose based on location.

For Home

The safest and most practical approach for most homes is to have at least one multipurpose ABC dry powder extinguisher on each floor. However, consider the indoor visibility issue with powder.

An alternative is a water mist extinguisher, which is safe on almost all home fire risks including electrical and small cooking oil fires, and leaves no residue. Place extinguishers near exits, not near potential fire sources, so you can escape if needed.

For Kitchen

Kitchens present unique risks with cooking oils. If you have a deep fat fryer or do significant frying, consider a wet chemical extinguisher or a fire blanket as your first line of defense.

A water mist extinguisher is also effective on contained cooking oil fires and is safer in a kitchen environment than powder. Always mount the extinguisher near the exit, not above the stove.

For Office

Modern offices with electronics, paper, and upholstery benefit from CO2 extinguishers for equipment areas and water or foam for general office areas.

Some facilities simplify by using water mist extinguishers throughout, which are safe on both Class A materials and live electrical equipment up to 1000V. Eco-foam extinguishers are also becoming popular in offices due to their environmental profile.

For Industrial Use

Industrial environments require a risk assessment to identify specific hazards. Facilities with combustible metals must have appropriate Class D fire extinguisher units. Areas with flammable liquids need foam or dry chemicals with adequate B ratings.

Power plants or coal-handling facilities may require specialized water extinguishers with additives and misting nozzles to avoid disturbing dust.

Common Mistakes People Make with Fire Extinguishers

Avoid these dangerous errors when selecting or using fire extinguisher types:

1. Using water on electrical fires: This causes electrocution and severe injury or death.

2. Using water on cooking oil fires: Water instantly vaporizes, creating an explosive fireball of burning oil that can engulf an entire kitchen.

3. Using powder indoors without considering consequences: The dense cloud eliminates visibility and causes breathing difficulty, potentially trapping occupants.

4. Not checking the pressure gauge: Extinguishers lose pressure over time and may fail when needed most. Check monthly that the gauge is in the green zone.

5. Using the wrong Class D agent: Not all Class D powders work on all metals. Using the wrong one can intensify the fire.

6. Positioning extinguishers incorrectly: Mounting near the fire source (e.g., above the stove) makes them inaccessible during a fire. Mount near exits instead.

Fire Extinguisher Color Codes Explained

While the standard in many countries is now red bodies with colored bands indicating contents, understanding color codes helps identify fire extinguisher types at a glance.

Do You Need More Than One Extinguisher?

In most cases, yes. No single extinguisher covers all possible fire types perfectly. Here is a simple approach:

1. Per floor: At least one multipurpose ABC extinguisher or water mist unit.

2. Kitchen: A fire blanket plus either a wet chemical or water mist extinguisher.

3. Garage/workshop: ABC powder extinguisher (with awareness of its indoor limitations) plus possibly a foam unit for liquid fuel risks.

4. Home office/electronics area: Small CO2 or clean agent extinguisher.

5. Vehicle: Compact ABC powder extinguisher rated at least 1A:20B:(E).

6. Boat/caravan: ABC powder extinguisher, checked regularly for corrosion.

The key is to ensure everyone knows where extinguishers are located and which ones to use for different fire types.

FAQ: Fire Extinguisher Types and Uses

What extinguisher works on electrical fires?

CO2 (carbon dioxide) extinguishers are the preferred choice for electrical fires as they leave no residue and are non-conductive.

Clean agent extinguishers are also excellent. ABC dry powder extinguishers are safe on electrical fires but will leave corrosive residue that damages electronics.

Are ABC extinguishers safe for homes?

Yes, ABC dry powder extinguishers are safe and effective for homes, providing broad coverage for most common fire risks.

However, be aware that discharging one indoors will create a dense cloud that reduces visibility and may cause breathing difficulty. Consider water mist extinguishers as an alternative for indoor home use.

Which extinguisher is best for kitchen fires?

For cooking oil and fat fires (Class F), wet chemical extinguishers are specifically designed for this purpose and are the best choice.

Fire blankets are also excellent for contained pan fires. Water mist extinguishers are effective on small cooking oil fires as well.

Can I use CO2 on wood fires?

No. CO2 extinguishers are ineffective on Class A fires like wood, paper, and textiles. The gas disperses too quickly and provides no cooling for deep-seated materials. Use water, foam, or ABC powder for wood fires.

What does ABC mean on a fire extinguisher?

ABC indicates that the extinguisher is rated for Class A (ordinary combustibles), Class B (flammable liquids), and Class C (energized electrical equipment) fires. This is the most common multipurpose rating for dry chemical extinguishers.

How long do fire extinguishers last?

Most stored-pressure fire extinguishers have a lifespan of 5 to 15 years depending on type and manufacturer.

Dry powder extinguishers should be replaced or pressure tested at 10 years of age. Service-free extinguishers like the P50 range offer 10-year warranties with no annual servicing required.

How do I know which fire extinguisher to buy?

Assess the specific fire risks in your environment.

1. For general home use, an ABC powder extinguisher or water mist extinguisher provides broad coverage.

2. For kitchens, add a fire blanket or wet chemical unit.

3. For offices with electronics, include CO2 extinguishers.

When in doubt, consult a fire safety professional or refer to your local fire service recommendations.

Safety Standards and Compliance

Fire extinguisher selection, placement, and maintenance are governed by various standards and regulations depending on your location. Key authorities include:

1. NFPA (National Fire Protection Association): NFPA 10 provides standards for portable fire extinguishers.

2. OSHA: In the United States, OSHA regulates workplace fire extinguisher requirements.

3. Local Fire Codes: Always check with your local fire marshal or authority having jurisdiction for specific requirements in your area.

For workplace safety, regular training on fire extinguisher types and their proper use is essential. Learn more about our comprehensive fire extinguisher training programs to ensure your team is prepared.

Final Summary

Understanding the six main fire extinguisher types and their specific uses is essential for effective fire protection.

1. Water extinguishers handle ordinary combustibles.

2. Foam units tackle both solids and flammable liquids.

3. ABC dry powder extinguishers provide versatile protection across multiple fire classes but have indoor limitations.

4. CO2 extinguishers protect sensitive electronics without residue.

5. Wet chemical units are specialized for commercial kitchen cooking oil fires.

6. Class D extinguishers address combustible metal hazards.

The safest approach for most homes and workplaces is keeping at least one multipurpose ABC extinguisher for general coverage, plus specialized extinguishers for kitchens or electronics areas as needed.

Proper placement, regular maintenance, and user training are just as important as selecting the right fire extinguisher types.

When you understand the specific fire risks in your environment and match them with the appropriate extinguisher, you create a first line of defense that can prevent a small incident from becoming a life-changing tragedy
