Hydrogen sulfide gas (H2S) is a colorless, flammable, and toxic gas often recognized by its distinct "rotten egg" smell.

It's a naturally occurring substance in various environments, including oil and gas production, wastewater treatment, and mining operations.

In Canada, industries that deal with these processes must be vigilant about H2S due to its potential health risks.

According to Occupational Safety and Health Administration (OSHA), 130 workplace fatalities in 2018 reported among workers in quarries, mining, oil, and natural gas extraction were caused by H2S, making it  the leading cause of gas inhalation death in these industries.

These dire statistics make it necessary to understand what is hydrogen sulphide gas, its impact on health, and explore preventive & safety measures.

Exposure to high levels of hydrogen sulfide can lead to serious health issues, including respiratory problems and, in extreme cases, death.

According to the Canadian Centre for Occupational Health and Safety (CCOHS), strict regulations are in place to monitor and control exposure to H2S.

Employers and workers must be aware of these regulations to minimize the risks of this dangerous gas.

Properties and Characteristics of Hydrogen Sulphide (H2S)

To properly understand and identify H2S, you must study its characteristics and properties. Here are some of the main properties of H2S gas.

Toxicological Properties

Hydrogen sulphide (H2S) is a highly toxic gas that can be deadly in high concentrations.

It has a characteristic odor of rotten eggs, which is noticeable at low concentrations, but prolonged exposure can desensitize the sense of smell and lead to a false sense of safety.

The toxicological properties of H2S are due to its ability to inhibit cellular respiration and cause oxygen deprivation, leading to respiratory failure and death.

Physical Properties

H2S is a colorless gas with a distinct odor of rotten eggs. It is slightly soluble in water and denser than air, which causes it to accumulate in low-lying areas. H2S is flammable and can form explosive mixtures with air at certain concentrations.

Chemical Properties

H2S is a reducing agent, which means it can donate electrons to other molecules in chemical reactions.

It reacts with many metals to form metal sulphides, which have a variety of industrial applications. H2S can also react with oxygen in the air to form sulphur dioxide and water.

Health Effects of Hydrogen Sulphide Gas Exposure

Exposure to low concentrations of H2S can irritate the eyes, nose, and throat, as well as headaches, dizziness, and nausea.

Prolonged exposure to low concentrations of H2S can lead to chronic respiratory and neurological effects. Conversely, exposure to high concentrations of H2S can cause a rapid loss of consciousness, respiratory failure, and death.

Symptoms of Hydrogen Sulphide Gas Poisoning

The symptoms of H2S poisoning depend on the concentration and duration of exposure. However, initial symptoms may include headache, dizziness, nausea, and eye and respiratory irritation.

Higher concentrations of H2S can cause loss of consciousness, respiratory failure, and convulsions. Long-term exposure to low concentrations of H2S can cause fatigue, headache, memory loss, and other neurological effects.

Overall, the H2S online training is critical for protecting the health and safety of workers who may be at risk of exposure to this hazardous gas. By providing workers with the knowledge and skills they need to identify and manage the risks associated with H2S, employers can create a safer workplace for everyone.

What is H2S Gas Used For?

Hydrogen sulfide (H2S) gas is a colorless, highly toxic gas with a distinctive odor similar to rotten eggs. Despite its hazardous nature, Hydrogen sulphide has several industrial applications, including:

Refining and Petrochemical Industries

1. H2S is used in petroleum refining to remove impurities, such as sulphur, from crude oil and other petroleum products.
2. It is also used to produce elemental sulphur, which produces fertilisers, detergents, and other chemicals.
3. In addition, H2S is used as a catalyst in certain chemical reactions in the petrochemical industry.

Semiconductor Manufacturing

1. H2S produces semiconductors, which selectively etch silicon dioxide layers from silicon wafers.
2. It is also used in making metal sulphides, which are used in manufacturing electronic components.

Pulp and Paper Production

1. H2S is used to bleach wood pulp in the paper production process.
2. It also removes lignin from the pulp, improving the final product's quality.
3. H2S is also used to control pulp and paper production's pH levels.

Despite its many industrial applications, H2S is a hazardous substance that can pose a significant risk to human health and safety. Therefore, proper precautions must be taken when handling H2S, including wearing appropriate personal protective equipment and ensuring adequate ventilation in work areas.

Health Hazards of H2S Exposure

Hydrogen sulfide (H2S) exposure can cause significant health risks, especially in environments like oil refineries, sewage treatment plants, and industrial facilities.

The gas can be harmful even at low concentrations, and its effects can escalate quickly with prolonged exposure.

Let’s explore the health hazards associated with H2S for both employers and workers to ensure safety.

1. Respiratory Irritation

One of the primary effects of H2S exposure is respiratory irritation. Hydrogen sulfide can cause symptoms like coughing, sore throat, and shortness of breath at low concentrations.

Prolonged or repeated exposure can lead to more severe respiratory issues, such as inflammation of the lungs (bronchitis) and difficulty breathing.

The Occupational Exposure Limits (OEL) are set in Canada to minimize the risk of these respiratory problems, but even brief exposure to higher concentrations can be dangerous.

2. Eye Irritation and Damage

Exposure to hydrogen sulfide can also cause significant eye irritation. Symptoms range from mild discomfort, such as redness and itching, to more severe reactions, like blurred vision and conjunctivitis (pink eye).

In high concentrations, H2S exposure can lead to more severe eye injuries, including corneal damage.

Ensuring proper protective equipment and monitoring exposure levels are critical steps in preventing eye-related injuries in workplaces where H2S is present.

3. Nervous System Effects

High levels of H2S exposure can impact the nervous system, leading to dizziness, headaches, and even unconsciousness.

This is particularly dangerous in environments where quick reactions are necessary to avoid accidents.

Chronic exposure to lower levels of H2S can also lead to long-term neurological effects, including memory loss and motor function impairment.

In extreme cases, very high concentrations of H2S can cause seizures, coma, or death within minutes.

4. Long-term Health Effects

While the immediate effects of H2S exposure are concerning, long-term exposure can lead to chronic health issues.

Workers exposed to hydrogen sulfide over extended periods may experience persistent respiratory problems, long-lasting neurological effects, and an increased risk of developing conditions like asthma or chronic bronchitis.

H2S safety regulations emphasize the need for continuous monitoring and strict adherence to safety protocols to mitigate these long-term risks.

Symptoms of Hydrogen Sulphide Gas Poisoning

Hydrogen sulfide gas poisoning can occur quickly, especially in high concentrations, and the symptoms can range from mild to severe.

Recognizing these symptoms early is crucial for preventing long-term health effects and ensuring timely medical intervention. Here are the common symptoms of H2S poisoning:

• Irritated Eyes and Throat: Exposure to low levels of H2S can cause redness, itching, and a sore throat, similar to symptoms of mild respiratory irritation.
• Headache and Dizziness: Inhaling H2S can lead to headaches and dizziness, which may progress to more severe neurological symptoms if exposure continues.
• Nausea and Vomiting: As the body reacts to the toxic gas, nausea and vomiting can occur, especially with prolonged exposure.
• Shortness of Breath: H2S can cause difficulty breathing and chest tightness, particularly in environments with poor ventilation.
• Confusion and Fatigue: Higher gas concentrations can lead to confusion, fatigue, and difficulty concentrating, indicating more severe neurological effects.
• Loss of Consciousness: In extreme cases, particularly with high-level exposure, H2S can cause rapid loss of consciousness, which can be life-threatening without immediate intervention.
• Seizures and Coma: At very high concentrations, hydrogen sulfide poisoning can lead to seizures, coma, and even death within minutes of exposure.

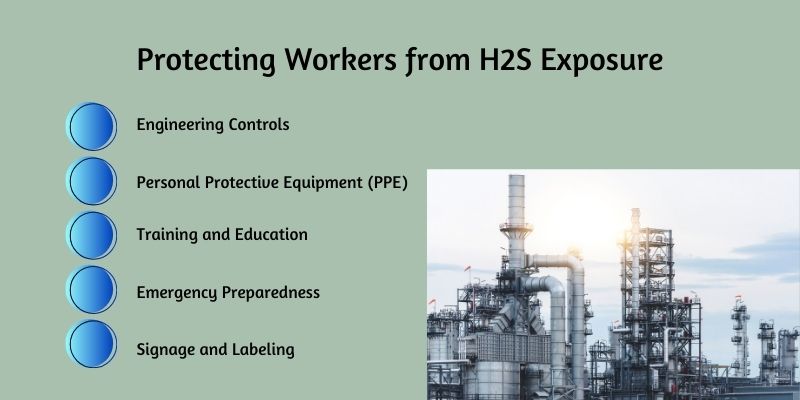

Protecting Workers from H2S Exposure

Protecting workers from hydrogen sulfide (H2S) exposure is essential in industries where this gas is present, such as oil and gas, wastewater treatment, and agriculture.

The dangers of H2S require comprehensive safety measures to prevent harmful exposure and ensure a safe working environment.

Implementing a combination of engineering controls, administrative practices, and personal protective equipment (PPE) is vital in minimizing risks.

Effective protection strategies comply with regulatory standards and also safeguard the health and well-being of workers.

1. Engineering Controls

Engineering controls are the first line of defense in protecting workers from H2S exposure. Proper ventilation systems are crucial in reducing hydrogen sulfide concentration in work areas, especially in confined spaces.

Installing ventilation systems that ensure continuous air exchange can significantly reduce the risk of H2S accumulation, providing workers with a safer environment.

Enclosure systems are another key engineering control. These systems isolate processes that generate H2S, preventing the gas from escaping into the work area.

By containing the source of H2S, workers are less likely to be exposed to harmful levels.

Additionally, the use of scrubbers and other filtration systems can remove H2S from the air before it reaches workers.

It's also essential to use safe and explosion-proof equipment in areas where H2S is present.

Since hydrogen sulphide is highly flammable, it is critical to have equipment that eliminates the risk of sparks or other ignition sources.

Regular maintenance and inspections of all safety systems and equipment ensure that controls remain effective.

By prioritizing engineering controls, companies can create a safer work environment and minimize the risks associated with H2S exposure.

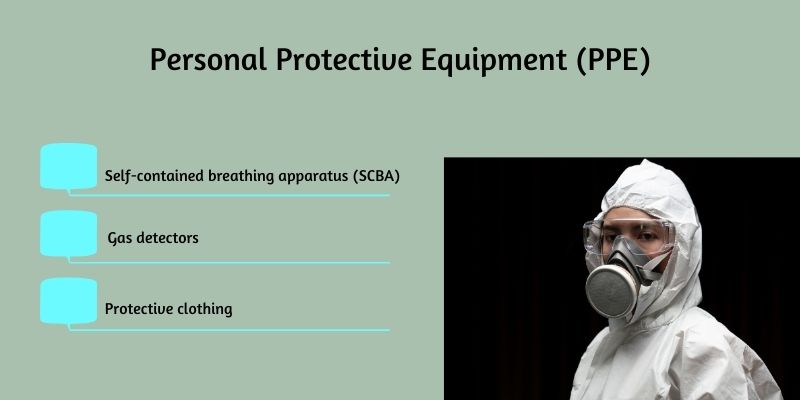

2. Personal Protective Equipment (PPE)

Personal Protective Equipment (PPE) is essential for safeguarding workers against exposure to hydrogen sulfide (H2S). The primary types of PPE required for H2S environments include respirators, gas detectors, and protective clothing.

Respirators, especially those with a self-contained breathing apparatus (SCBA), are crucial in areas with high H2S concentrations, providing workers with clean air, especially in the oil & gas sector.

In lower-risk situations, air-purifying respirators with H2S-specific filters may be used, though they are less effective in high concentrations.

Gas detectors, worn on the body, alert workers when H2S levels exceed safe thresholds, allowing them to evacuate or take corrective actions.

These devices are critical in detecting the presence of H2S, especially in confined spaces where the gas can accumulate without warning.

Protective clothing, including gloves and chemical-resistant suits, can shield workers from contact with contaminated surfaces.

However, PPE has limitations. Respirators must be properly fitted to the wearer's face to ensure a seal, and they require regular maintenance to function correctly. Gas detectors need frequent calibration to provide accurate readings.

Moreover, PPE should be viewed as a last line of defense—engineering controls and administrative measures should be prioritized to reduce reliance on PPE.

Proper PPE training correct use and limitations is essential to ensure workers are fully protected against H2S exposure.

3. Training and Education

Training and education are vital to protecting workers from hydrogen sulfide (H2S) hazards.

Workers must be thoroughly trained on the risks associated with H2S, including understanding the symptoms of exposure, transportation, how to use PPE and the importance of proper ventilation and other control measures.

Knowledge of the gas's characteristics, such as its flammability, toxicity, and tendency to accumulate in low-lying areas, helps workers identify potential dangers before they escalate.

H2S training course offered by Canada Safety Training Centre cover emergency procedures, including evacuation routes, first aid for H2S exposure, and the use of gas detection equipment.

These sessions equip workers with the necessary skills to respond to emergencies and build confidence in handling potentially life-threatening situations.

Developing an H2S exposure control plan that outlines safety protocols, responsibilities, and emergency procedures is also crucial. This plan should be regularly reviewed and updated to address new risks or changes in operations.

In addition to initial training, ongoing education through safety drills and refresher courses ensures that workers remain vigilant and prepared.

These drills can simulate real-life scenarios, helping workers practice their responses and identify gaps in their knowledge of the company's safety procedures.

By investing in comprehensive training and education, employers can create a culture of safety and ensure that all workers are equipped to handle H2S hazards effectively.

4. Emergency Preparedness

Emergency preparedness is essential for protecting workers from hydrogen sulfide (H2S) gas dangers.

Given the toxic and potentially fatal nature of H2S, developing emergency response plans is crucial.

These plans should outline the steps to be taken in the event of an H2S release or exposure, including immediate evacuation procedures, communication protocols, and the roles and responsibilities of all personnel involved in the response.

Key elements of a comprehensive emergency preparedness plan include the availability of appropriate rescue and first aid equipment.

This equipment should include portable gas detectors, self-contained breathing apparatuses (SCBAs), and resuscitation devices, all of which must be readily accessible in areas with H2S risk.

Additionally, workers must be trained to use this equipment, ensuring they can act quickly and effectively in an emergency.

Regular drills and simulations are essential for reinforcing this training, helping workers practice their responses, and identifying gaps in the emergency plan.

Another critical aspect of emergency preparedness is ensuring that all workers are trained on emergency procedures, including rescue and evacuation.

Workers should know how to safely evacuate an area, use personal protective equipment (PPE), and assist colleagues who may be affected by H2S exposure.

In the event of an H2S release, clear communication and swift action are vital to minimize the risks to workers' health and safety.

By prioritizing emergency preparedness, companies can mitigate the dangers of H2S and protect their workforce.

5. Signage and Labeling

Signage and labeling are vital in preventing hydrogen sulfide (H2S) exposure by identifying areas and equipment that pose a risk.

In workplaces where H2S is present, clear hazard warning signs must be posted in areas with potential exposure.

These signs should be visible from a distance and use standardized symbols and language to communicate the danger effectively.

For example, warning signs may include the "skull and crossbones" symbol to indicate toxicity or specific H2S hazard warnings.

These visual cues alert workers to the presence of H2S and remind them to take appropriate safety precautions.

Labeling is equally important, especially on equipment, piping, and storage vessels that contain or may release H2S.

Proper labeling ensures that workers and emergency responders can quickly identify hazardous materials and understand their associated risks.

Labels should include information such as the chemical name (hydrogen sulfide), the associated hazards (e.g., flammability, toxicity), and instructions for safe handling.

This information is crucial for preventing accidental exposures and ensuring workers follow proper safety protocols when working with or near H2S.

In addition to static signage and labeling, it's essential to regularly inspect and update these materials to reflect any changes in the workplace.

For example, if new equipment is installed or the layout of the facility changes, signage and labels must be adjusted accordingly.

By maintaining clear and accurate signage and labeling, employers can enhance safety awareness and reduce the risk of H2S-related incidents.

What are the Sources of H2S Exposure

Hydrogen sulfide (H2S) is a hazardous gas commonly found as a by-product in various industries, especially those involving the decomposition of organic matter.

Understanding the sources of H2S exposure is critical for preventing accidents and ensuring the safety of workers.

Below are some of the common industries and situations where H2S exposure is a risk:

• Sewage Systems: In sewage systems, hydrogen sulfide gas is generated as organic waste materials break down without oxygen. Workers maintaining or repairing sewage systems, septic tanks, or waste treatment facilities are at risk of exposure, particularly in confined spaces with limited ventilation.
• Anywhere Organic Material is Left to Break Down: Decomposition of organic matter, such as plant and animal remains, can produce H2S. This can happen in various settings, including landfills, composting facilities, and natural environments where organic material accumulates. Workers involved in waste management or environmental clean-up may encounter H2S in these areas.
• Agriculture: Hydrogen sulfide is commonly found in agricultural settings, particularly in manure pits where animal waste is stored and left to decompose. This gas can accumulate to dangerous levels, especially in enclosed spaces like barns or storage tanks, posing a threat to farmworkers and livestock.
• Compost Piles: Similar to manure pits, compost piles can produce H2S during decomposition. While the levels of H2S may vary, workers handling large quantities of organic waste or managing industrial-scale composting operations should know the potential for gas exposure.
• Restoration, Renovation, & Demolition: During restoration, renovation, or demolition projects, workers may disturb areas where H2S has accumulated, such as old sewage lines, landfills, or swamps. The gas can be released unexpectedly during excavation or material handling, making it essential to assess potential risks before starting any project.
• Excavations in Landfills or Swamps: Landfills and swamps are natural sources of hydrogen sulfide due to the breakdown of organic matter in low-oxygen environments. Excavation activities in these areas can release trapped H2S gas, endangering workers in digging, construction, or remediation.
• Mining: In mining operations, particularly in tunnels where mineral rocks contain hydrogen sulfide, workers may encounter the gas during drilling, blasting, or extraction activities. H2S can be found in various minerals, and its release can create underground hazardous conditions.
• Oil & Gas: The oil and gas industry is one of the most well-known sources of hydrogen sulfide exposure. During drilling, extraction, or refining processes, H2S can be released from the oil and gas reservoirs where it is dissolved. Workers in this industry are at high risk, especially in areas with high H2S concentrations, making safety protocols and monitoring essential.
• Pulp & Paper: In the pulp and paper industry, hydrogen sulfide is a by-product of the chemical process that breaks down wood into pulp. The gas can be released during various stages of production, particularly in enclosed spaces where wood is processed, posing a risk to workers involved in the manufacturing process.

Each of these industries and activities presents unique challenges for managing H2S exposure.

Frequently Asked Question

What are the essential aspects of being aware of Hydrogen sulphide in emergencies?

In emergencies involving Hydrogen sulphide (H2S), it is essential to be aware of the following:

The potential health hazards associated with exposure to H2S, including the signs and symptoms of H2S poisoning and the appropriate first aid measures should be taken.

The proper use and maintenance of personal protective equipment (PPE) and emergency response equipment, such as gas detectors and breathing apparatus, to minimize the risk of H2S exposure and ensure the safety of all personnel involved.

How is Hydrogen sulphide gas detected and monitored?

Hydrogen sulphide (H2S) gas can be detected and monitored using:

Portable gas detectors use electrochemical or optical sensors to measure the concentration of H2S in the air.

Fixed gas detection systems installed in industrial facilities use sensors to continuously monitor the H2S concentration and trigger alarms or ventilation systems when levels exceed safe limits.

What is the role of online H2S safety training courses?

Online Hydrogen sulphide (H2S) safety training courses play a crucial role in the following:

Educating workers on the hazards of H2S, safe work practices, and emergency response procedures to reduce the risk of H2S exposure and ensure their safety in the workplace.

Providing convenient and cost-effective safety courses can be completed at the worker's own pace, allowing them to gain the necessary knowledge and skills to work safely with H2S.

Is Hydrogen sulphide poisonous?

Yes, Hydrogen sulphide (H2S) is highly poisonous. It can cause serious health effects and can be lethal in high concentrations.

What is the exposure limit to H2S in Canada?

The occupational exposure limit for hydrogen sulfide (H2S) in Canada is typically set at 10 ppm (parts per million) as an 8-hour time-weighted average (TWA) and 15 ppm as a short-term exposure limit (STEL).

What is the fatal limit of H2S?

Exposure to hydrogen sulfide levels of 500-1,000 ppm can be immediately fatal, causing unconsciousness and death within minutes due to respiratory failure.

What are the 3 symptoms of H2S?

Common symptoms include headaches, dizziness, and nausea, often at low gas concentrations.

Conclusion

H2S is a serious hazard in various industries. Understanding what is hydrogen sulphide gas and its associated risks is crucial for worker safety.

This toxic gas, often found in oil and gas, agriculture, sewage systems, and other sectors, can be deadly if not managed properly.

Prolonged or high-concentration exposure can lead to severe health issues, including respiratory problems, unconsciousness, and even death.

Recognizing symptoms such as headaches, dizziness, and nausea can help in the early detection and prevention of serious incidents.

Employers and workers must be vigilant in controlling H2S exposure. Implementing effective engineering controls, such as proper ventilation and explosion-proof equipment, is essential to reduce the risk.

To ensure safety, personal protective equipment (PPE), including respirators and gas detectors, must be worn in high-risk areas.

Training and education are equally important, empowering workers to recognize hazards and respond appropriately in emergencies.

Companies can protect their workers and prevent tragic incidents by following strict safety protocols and being aware of the dangers of hydrogen sulfide gas.

It's crucial for all involved to stay informed and proactive in minimizing the risks associated with H2S exposure.
