Handling flammable liquids without knowing their flash point is like walking on thin ice—it only takes a spark to turn disaster into tragedy.

Every year, fires and explosions caused by flammable substances injure workers, destroy property, and even claim lives.

According to the Canadian Centre for Occupational Health & Safety (CCOHS), workplace fires involving flammable liquids result in millions in damages and countless close calls.

That’s where flash point testing comes in—a simple yet lifesaving check that reveals the lowest temperature at which a liquid’s vapors can ignite.

Think of it as a warning label written in science: if a liquid’s flash point is low, even a small heat source—like a spark from a tool or a hot surface—can trigger a fireball. Testing helps workplaces set safer rules for storage, transport, and handling.

For example, diesel and gasoline have very different flash points, which means they demand different safety precautions.

In this guide, we’ll break down how flash point testing works (including open-cup vs. closed-cup methods), why it’s a legal must-have under Canadian safety laws, and real cases where skipping this step led to disaster.

Whether you’re working in a lab, factory, or transport fleet, knowing a liquid’s flash point isn’t just smart—it’s the difference between a normal workday and an emergency.

Stay safe. Test first. No exceptions!

What Is Flash Point?

Flash point is the lowest temperature at which a liquid gives off enough flammable vapor to ignite—but only when exposed to a spark or flame.

It’s a critical safety benchmark, helping workers avoid explosive hazards when handling fuels, solvents, or chemicals.

Key Clarifications

• Not the Fire Point (higher temp where vapors burn continuously).
• Not Autoignition Temp (much higher temp where ignition happens without a spark).

Why It Matters in Canada

• Safety Classification: Determines if a liquid is "flammable" (flash point < 37.8°C) or "combustible" (flash point ≥ 37.8°C) under WHMIS and Transport of Dangerous Goods (TDG) Regulations.
• Equipment Selection: Dictates storage rules (e.g., flammable cabinets), ventilation needs, and PPE (like explosion-proof tools in oil & gas).
• Example: Gasoline’s flash point (-43°C) means even winter cold won’t stop its vapors from igniting—demanding strict controls.

Flash point testing isn’t just science—it’s the first defense against workplace fires.

Flash Point vs Fire Point vs Auto-Ignition – What’s the Difference?

When working with flammable liquids, understanding these three critical temperatures can mean the difference between safety and disaster. Here’s how they differ—and why each matters in real-world applications.

Flash Point

• The lowest temperature at which a liquid emits enough vapor to briefly ignite when exposed to a spark or flame.
• Key Trait: The flame doesn’t sustain—it "flashes" and goes out.

Safety Impact

• Determines handling precautions (e.g., ventilation, no-smoking zones).
• Classifies liquids under WHMIS/TDG (e.g., gasoline’s flash point: -43°C = extreme hazard).
• Guides PPE selection (e.g., anti-static gear for low-flash-point chemicals).

Fire Point

• The higher temperature at which vapors burn continuously after ignition.
• Key Trait: Unlike flash point, the flame does not extinguish on its own.

Safety Impact

• Influences fire suppression methods (e.g., foam vs. CO₂ extinguishers).
• Affects storage design (e.g., flammable cabinets rated for fire resistance).
• Critical for emergency response planning (how long a fire may burn).

Auto-Ignition Temperature (AIT)

• The minimum temperature at which a substance ignites spontaneously—without a spark or flame.
• Key Trait: No external ignition source needed (e.g., overheating machinery).

Safety Impact

• Dictates process design (e.g., max operating temps in refineries).
• Prevents thermal runaway reactions (common in chemical manufacturing).
• Guides equipment selection (e.g., heat-resistant materials near boilers).

Why This Matters in Canadian Workplaces

• Flash Point: Decides if a liquid is "flammable" (flash point < 37.8°C) or "combustible" (≥ 37.8°C) under TDG/WHMIS.
• Fire Point: Helps firefighters choose suppression tactics (e.g., diesel’s fire point ~52°C means water mist worsens the fire).
• Auto-Ignition: Explains why leaking hydraulic oil near a hot engine can self-ignite (AIT ~250–300°C).

Real-World Example

A Manitoba warehouse stored ethanol (flash point: 12°C) near a heater. Vapors reached flash point, a spark from a forklift ignited them, and the fire point ensured flames spread. Had workers known these temps, they’d have used explosion-proof equipment.

Ensure your team knows these thresholds—and trains for fires through proper Fire Extinguisher Training. Ignorance isn’t just risky—it’s flammable.

Flash Point Testing Methods

Flash point testing is the frontline defense against flammable liquid hazards. Different methods exist to measure this critical safety parameter, each suited for specific scenarios.

The choice between open cup and closed cup methods depends on real-world conditions the liquid will face—whether exposed to air (like spills) or contained (like storage tanks).

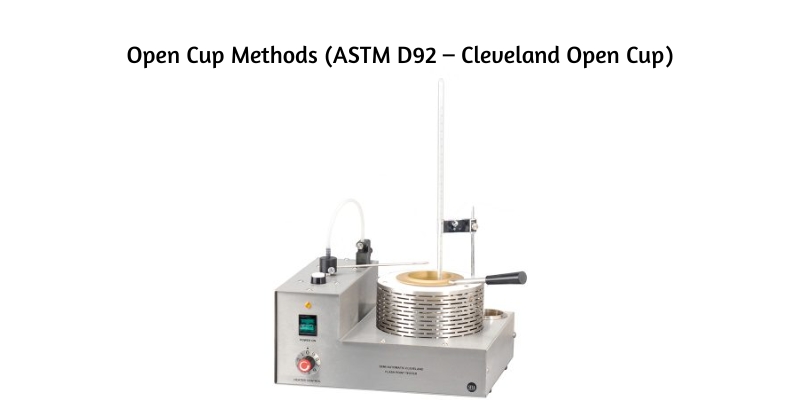

Open Cup Methods (ASTM D92 – Cleveland Open Cup)

The Cleveland Open Cup (COC) method heats a liquid sample in an open container while periodically passing a small flame over its surface. The flash point is recorded when a brief flame appears.

Best For

• Lubricants, biofuels, and high-flash-point liquids (typically >79°C)
• Simulating spill conditions where vapors can disperse

Pros & Cons

Open cup tests reflect worst-case scenarios like leaks, where vapors mix with air. However, they often give higher flash points than real sealed environments, potentially minimising risks.

Closed Cup Methods (ASTM D93 – Pensky-Martens)

Closed cup tests (like Pensky-Martens) heat samples in a sealed container with a tiny ignition source inside. The flash point is detected when vapors ignite without escaping.

Best For

• Fuels, solvents, and low-flash-point liquids (e.g., gasoline, acetone)
• Regulatory compliance (OSHA, TDG) due to stricter safety margins

Pros & Cons

Closed cup results are 5–10°C lower than open cup for the same liquid—critical for classifying flammability under WHMIS/TDG. For example, a liquid testing at 40°C (open cup) might be "combustible," but at 35°C (closed cup), it’s "flammable" with stricter rules.

Choosing the Right Method

Decision Factors

Sample Type

• Open cup: Thick oils, asphalt.
• Closed cup: Gasoline, alcohol, acetone.

Regulatory Needs

• Transport/storage: Closed cup (ASTM D93).
• Spill risks: Open cup (ASTM D92).

Testing Conditions

• Closed cup mimics tanks; open cup mimics spills.

Real-World Example

A BC chemical plant switched from open to closed cup testing for solvent storage tanks. The revised flash points (lower by 8°C) triggered upgraded ventilation—preventing a near-miss vapor explosion.

Quick Guide

For Canadian workplaces, always check TDG Class 3 and WHMIS rules—some liquids must use closed cup testing by law. When in doubt, consult a flammable safety expert.

Testing isn’t just paperwork—it’s the data standing between your team and a fireball.

How Flash Point Testing Prevents Fires and Explosions

Flash point testing isn’t just a lab procedure—it’s a critical safety tool that prevents catastrophic fires and explosions in workplaces.

By determining exactly when a liquid’s vapors can ignite, this testing shapes how we classify, store, handle, and regulate flammable materials. Here’s how it saves lives.

Classifying Liquids: Flammable vs. Combustible

Flash point testing separates hazardous liquids into two key categories:

Flammable Liquids (Flash Point < 37.8°C / 100°F)

Examples: Gasoline (-43°C), acetone (-20°C), ethanol (12°C).

Safety Impact

• Requires explosion-proof storage (e.g., OSHA-approved flammable cabinets).
• Mandates specialized labels (e.g., WHMIS/GHS flame pictograms).
• Limits transport quantities under TDG regulations.

Combustible Liquids (Flash Point ≥ 37.8°C / 100°F)

Examples: Diesel (52°C), lubricating oil (150°C).

Safety Impact

• Permits less restrictive storage (e.g., non-pressurized tanks).
• Still requires ventilation controls to prevent vapor buildup.
• Misclassifying a liquid (e.g., assuming diesel is "safe" at room temperature) can lead to deadly fires. Testing ensures the right precautions.

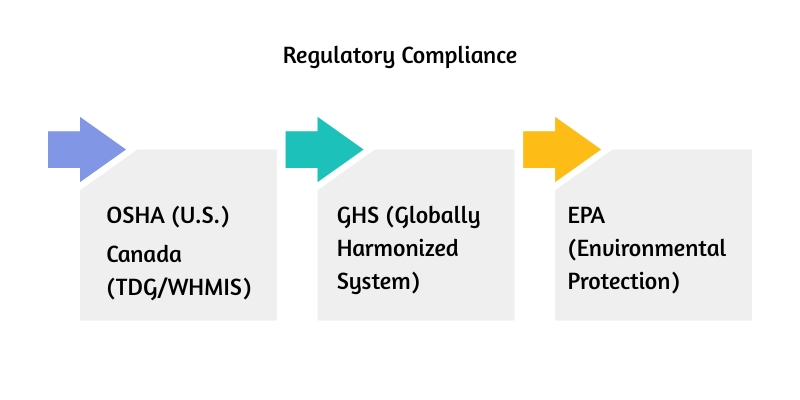

Regulatory Compliance (OSHA, EPA, GHS, TDG)

Flash point data is the backbone of global safety laws:

OSHA (U.S.) & Canada (TDG/WHMIS)

• Requires closed-cup testing for accurate hazard classification.
• Dictates container types (e.g., metal vs. plastic drums).
• Sets workplace exposure limits for vapor concentrations.

GHS (Globally Harmonized System)

• Uses flash points to assign hazard pictograms (e.g., flame, exploding bomb).
• Standardizes Safety Data Sheets (SDS) for global trade.

EPA (Environmental Protection)

• Impacts spill containment rules for low-flash-point liquids.

Real-World Impact: A Toronto chemical supplier was fined $250,000 for shipping a "combustible" liquid (open-cup test) that was actually "flammable" (closed-cup test).

Safe Storage & Process Design

Flash point data directly informs:

Storage Solutions

• Ventilation Needs: Low-flash-point liquids (e.g., acetone) require explosion-proof fans.
• Temperature Controls: Storing ethanol in a heated warehouse? Flash point testing says keep it below 12°C.
• Container Materials: Plastic vs. steel. Flash point determines static spark risks.

Preventing Outgassing & Spills

• Sealed vs. Open Tanks: A liquid with a 30°C flash point needs vapor recovery systems in summer heat.
• Spill Response: High-flash-point oils (e.g., motor oil) need absorbents, while gasoline spills demand vapor suppression.

Case Study: A Vancouver brewery storing ethanol (flash point: 12°C) installed grounded containers and nitrogen blanketing after testing revealed static ignition risks.

Ignoring flash point testing is like playing roulette with fire. The data doesn’t just sit in a report—it actively prevents disasters.

Real-World Examples and Case Studies

Flash point testing is a critical barrier proven to prevent disasters. From offshore oil rigs to retail storage rooms, ignoring flash points leads to explosions, injuries, and costly fines.

Here are three real-world cases where flash point knowledge made—or could have made—all the difference.

Brae Field Oil Rig Explosion (Static Discharge in Turbine Oil Tank)

• Location: North Sea, Brae Alpha platform
• Incident: A catastrophic explosion occurred inside a turbine oil storage tank due to static electricity igniting vapors.

Root Cause

• The oil’s flash point was misclassified as "safe" for storage without vapor control.
• Workers assumed the oil (a higher flash point lubricant) wouldn’t produce flammable vapors at ambient temps.
• Static discharge from pumping created an ignition source.

How Flash Point Testing Could Have Prevented It

Proper closed-cup testing would have revealed the oil’s true flash point under operational conditions.

Correct classification would have mandated:

• Grounding/bonding to prevent static sparks.
• Nitrogen blanketing to suppress flammable vapors.
• Aftermath: $50M+ in damages, platform shutdown for months.

Retail & Industrial Mishandling (Low Flash Point Liquids)

• Retail: A hardware store stored gasoline cans near a water heater (flash point: -43°C). Vapors reached ignition temp, causing an explosion.
• Warehouses: Workers spilled acetone (flash point: -20°C) near an electrical panel, igniting instantly.
• Manufacturing: A factory pumped flammable solvent through ungrounded pipes, triggering a static fire.

Why Flash Point Testing Was Ignored:

• Assumed "small quantities" were safe (even a cup of gasoline vapors can explode).
• Used open-cup test data (underestimating hazard in enclosed spaces).
• No SDS/WHMIS training for workers handling flammables.

Prevention Fixes

• Correct classification (closed-cup testing).
• Safe storage (flammable cabinets away from ignition sources).
• Static control (grounded containers, conductive hoses).

Small-Scale Flash Point Testing in Waste Labs

Waste treatment facilities handle unknown mixtures of solvents, oils, and chemicals. Without flash point data:

• Explosion risks during compaction/incineration.
• Regulatory violations (EPA/OSHA require hazard classification).

The Solution

• Small-scale closed-cup testers (e.g., Setaflash, ASTM D3828) use 1-2mL samples to quickly determine flash points.

Benefits

• Prevents accidental mixing of incompatible wastes.
• Guides safe disposal (e.g., high-flash-point oils can be recycled; low-FP solvents need special handling).

Case Study: A Quebec hazardous waste lab avoided a diesel-acetone explosion by testing an unknown drum’s flash point before processing.

Flash point testing isn’t optional—it’s the barrier between routine work and disaster.

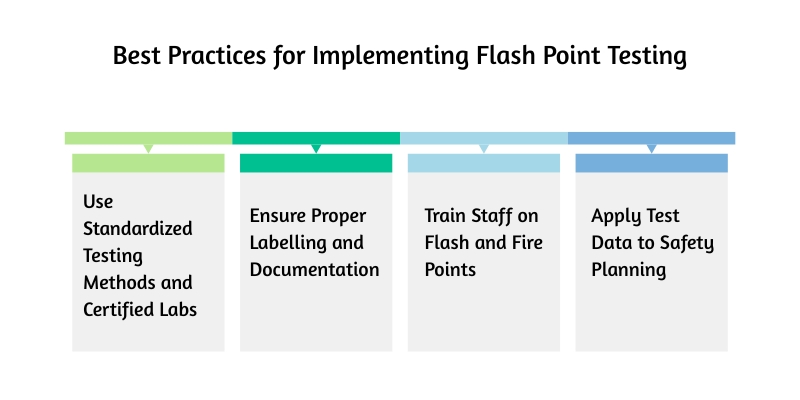

Best Practices for Implementing Flash Point Testing

Implementing flash point testing properly is key to preventing fires, explosions, and costly downtime in any workplace that handles flammable liquids.

It’s not enough to perform a single test and move on—consistency, training, and proper data use are what make the difference in real-world safety.

1. Use Standardized Testing Methods and Certified Labs

Always use recognized testing procedures such as ASTM D56 (Tag closed cup) or ASTM D92 (Cleveland open cup), depending on your material and application. These standards ensure your results are accurate and comparable across sites and suppliers.

Work with certified laboratories that follow strict Quality Assurance and Quality Control (QA/QC) protocols to avoid false readings, which can be dangerous.

2. Ensure Proper Labelling and Documentation

Flash point data must be clearly marked on chemical containers and Safety Data Sheets (SDS). Keep detailed records of test results, update them regularly, and make them easily accessible to all relevant staff and safety officers.

3. Train Staff on Flash and Fire Points

Employees should be trained not only to understand flash point data, but also to use it in practice—such as setting safe handling temperatures or selecting appropriate storage conditions.

Include this in your hazard recognition training, so workers can spot and control fire risks before an incident occurs.

4. Apply Test Data to Safety Planning

Use flash point results to design or adjust:

• Storage protocols (e.g. flammables cabinets, segregation)
• Ventilation systems in storage and work areas
• Spill response kits specific to the materials used
• Emergency response plans, including fire suppression methods and evacuation procedures

By following these best practices, Canadian workplaces can reduce fire hazards, stay compliant with federal and provincial regulations, and—most importantly—keep their workers safe.

Regulations and Standards

Flash point testing plays a central role in classifying, labeling, and safely managing flammable liquids in both national and international safety systems.

Various agencies and standards-setting organizations rely on this key property to guide workplace safety, transportation rules, and hazard communication.

Regulatory Classifications

OSHA (Occupational Safety and Health Administration) in the U.S. classifies liquids with a flash point below 93°C as flammable. Materials are further divided into categories based on how easily they ignite—those with lower flash points are considered more hazardous.

The EPA (Environmental Protection Agency) uses flash point data to regulate the storage and disposal of hazardous wastes that may ignite under normal conditions.

GHS (Globally Harmonized System), adopted worldwide including in Canada, uses flash point values to assign hazard categories for flammable liquids. For example, Category 1 includes liquids with flash points below 23°C and boiling points below 35°C.

DOT/UN classifications also use flash points to determine how flammable liquids are packaged, labeled, and transported, both domestically and internationally.

Standard Test Methods

Flash point must be measured using standardized methods to ensure consistency and compliance. Common methods include:

• ASTM D56 – Tag Closed Cup
• ASTM D92 – Cleveland Open Cup
• ASTM D93 – Pensky-Martens Closed Cup
• ISO 2719 – International version of Pensky-Martens method

Each method is suited to different types of substances and regulatory needs. It’s critical to use the correct method based on the material’s characteristics and legal requirements.

WHMIS and Flash Point Relevance in Canada

In Canada, WHMIS (Workplace Hazardous Materials Information System) uses flash point as a key factor for determining whether a substance is flammable or combustible under Hazard Class: Flammable Liquids.

Workers are trained through WHMIS Online Training program to read and interpret flash point data on Safety Data Sheets (SDS), so they can store, handle, and dispose of materials safely.

Lab Accreditation

To ensure accuracy, flash point testing should be conducted by laboratories accredited to ISO/IEC 17025, the international standard for testing and calibration labs.

This confirms that the lab is technically competent and follows strict quality assurance procedures, which is especially important when test results inform regulatory compliance and workplace safety measures.

By aligning with these standards and regulations, Canadian workplaces can ensure they’re not only compliant—but actively reducing the risk of fire and explosion.

Innovations and Emerging Trends

As workplace safety standards evolve, so do the technologies used to manage flammable hazards.

In recent years, several innovations have made flash point testing faster, more accessible, and easier to integrate into modern safety programs—especially in industries where time, accuracy, and mobility are critical.

Rapid Small-Scale Closed Cup Testers

One of the biggest advancements is the development of compact closed cup testers that deliver accurate results with minimal sample size and shorter testing time.

Devices like the Setaflash Series 8 or MINIFLASH FP Vision allow labs and companies to run reliable flash point tests in under two minutes.

These instruments reduce chemical waste, require less training, and meet standards like ASTM D7094, which is recognized for its precision.

Portable On-Site Testing

Traditionally, flash point tests required samples to be shipped to off-site labs, delaying safety decisions.

Now, portable flash point testers are being used directly in the field—on construction sites, in remote oilfields, or near hazardous storage zones.

This allows safety teams to quickly assess liquids before use or disposal, enhancing real-time decision-making.

Digital SDS and Smart Monitoring

Flash point data is increasingly being embedded into digital Safety Data Sheets (SDS), accessible via QR codes or integrated into workplace safety apps.

This ensures that workers can instantly view flash/fire point data from their mobile devices or tablets, improving awareness and compliance.

Some advanced facilities now use sensor-based alert systems tied to environmental monitoring.

These systems trigger automated alarms when temperatures in flammable liquid storage areas approach a material’s flash point—providing early warnings before dangerous conditions arise.

These emerging trends are not just about efficiency—they’re about enhancing workplace safety through smarter tools and faster access to critical data.

For Canadian industries managing flammable materials, adopting these innovations can mean fewer delays, better hazard control, and stronger overall protection for workers.

Conclusion

Flash point testing is essential for identifying flammability risks. It reveals the lowest temperature at which a liquid's vapors can ignite, helping prevent fires and explosions. Without this data, workplaces gamble with safety.

Every flammable liquid requires proper classification. Testing determines if it's "flammable" (flash point below 37.8°C) or "combustible" (above 37.8°C). This distinction guides storage, handling, and emergency planning.

Real-world accidents prove the consequences of neglect. From chemical plant explosions to warehouse fires, many disasters trace back to unverified flash points. Proper testing could have prevented them.

Take action now:

• Audit all unverified liquids in your facility
• Invest in certified lab testing using closed-cup methods
• Train staff to understand and apply flash point data

Regulations like WHMIS and OSHA mandate flash point knowledge. But beyond compliance, it's about protecting lives. One test can mean the difference between safety and catastrophe.

Make flash point testing a core part of your safety program. It's not just paperwork - it's your first defense against preventable disasters.
