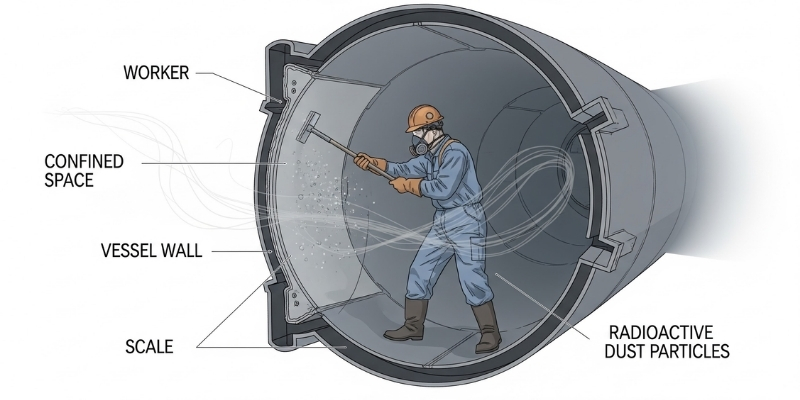

The pipe fitter pulls himself through the manway into the separator vessel. The unit has been offline for three days, ventilated and declared safe for entry. His task is routine: remove the scale buildup from the internal walls before the vessel returns to service.

He braces himself in the cramped space, raises his scraping tool, and gets to work. At this moment, he has no idea that this task creates a high risk of NORM exposure to workers like him.

Within minutes, the air around him fills with fine dust. He cannot see it clearly in the confined lighting. He cannot smell it. He feels no burning, no immediate warning that anything is wrong.

The dust is simply there, settling on his coveralls, his gloves, the exposed skin of his neck and face. He breathes it in without a second thought. It is just scale, after all. Just mineral deposits.

But this dust contains radium-226 and radium-228, radioactive elements that have concentrated inside this vessel over years of oil production.

The particles are small enough to lodge deep in his lung tissue, where they will remain for decades, emitting alpha radiation that damages cells with every decay.

The dose he receives during this single shift will accumulate silently. The cancer that may result twenty or thirty years from now will not be traceable to this moment by any obvious chain of causation. But the connection will be real.

This scenario repeats across Canadian industry every day. In oil and gas, mining, water treatment, and scrap recycling, workers disturb NORM without knowing it. They handle contaminated equipment, process radioactive scale, and breathe dust they cannot see.

Understanding exactly how this happens, task by task, is the first step toward preventing it.

What Is NORM and Why Workers Encounter It

Naturally Occurring Radioactive Material, or NORM, refers to radioactive elements that have been present in the earth's crust since the planet formed.

The primary radionuclides of concern are radium-226 from the uranium decay series and radium-228 from the thorium decay series. These elements are found naturally in rocks, soil, and water at low concentrations.

The problem for workers begins when industrial processes concentrate these materials. In the oil and gas industry, for example, radium co-precipitates with barium and calcium to form scale inside pipes, vessels, and wellheads. This scale can contain radium at activity levels thousands of times higher than background.

A study of scale residues from oil and gas production found mean activity concentrations of 4082 Bq/kg for radium-226 and 1060 Bq/kg for radium-228, levels that create significant radiological hazards.

Workers encounter NORM whenever they handle equipment or materials where these concentrations occur. This includes:

1. Scale deposits inside oil and gas production equipment

2. Sludge accumulated in tanks and separators

3. Produced water and the filters used to treat it

4. Contaminated scrap metal from decommissioned facilities

5. Mineral ores and processing dust in mining operations

6. Filter media and backwash from water treatment plants

The International Atomic Energy Agency identifies industries handling zircon, a mineral that contains elevated natural radionuclides, as major NORM handling sectors. In these industries, raw materials in powder form create inhalation hazards during processing.

Where Exposure Happens Most

NORM exposure is not evenly distributed across industry. Certain sectors concentrate the hazard through the nature of their processes. Understanding where NORM accumulates helps target prevention efforts.

Oil and Gas Production

The oil and gas industry accounts for the largest volume of NORM-contaminated material in many jurisdictions.

During production, formation water containing dissolved radium is brought to the surface along with hydrocarbons. Changes in temperature and pressure cause radium to precipitate out, forming scale on the inside of production equipment.

The highest activity concentrations appear in residues from separators and water treatment vessels. Scale samples from these locations in one study showed radium equivalent activity reaching 1148.60 Bq/kg, more than three times the recommended safety limit.

Workers who enter these vessels for cleaning or maintenance face the most intense exposure.

Components most likely to accumulate NORM include:

1. Wellheads and flow lines

2. Separation vessels

3. Heater treaters

4. Storage tanks

5. Pumps and valves

6. Water disposal systems

Mining and Mineral Processing

Industries that process mineral sands, phosphate, and rare earth elements handle materials with elevated natural radionuclides. The zircon industry exemplifies this risk, as raw materials arrive in powder form that becomes airborne during handling.

Workers in refractory manufacturing, casting frame production, and glaze manufacturing face inhalation exposures that require assessment.

The primary exposure route in these industries is inhalation of dust containing radionuclides. A study of Korean zircon facilities found that internal doses varied by work type, environment, and handling methods, with thorium identified as the major dose contributor.

Scrap Metal Recycling

When oil and gas facilities decommission equipment, the contaminated components often enter the scrap metal stream. Piping, vessels, and valves containing radioactive scale end up at recycling yards, where workers cut, sort, and process them without knowing the hazard exists.

The risk in recycling is compounded by the fact that contamination is internal. A pipe may look clean on the outside while containing a high-activity scale inside.

When workers cut such pipes with torches or shears, they liberate radioactive dust and fumes, creating inhalation hazards and spreading contamination across the facility.

Water Treatment and Waste Handling

Groundwater treatment for drinking water purposes can generate residues with enhanced radionuclide content.

When treatment processes remove radium from water, it accumulates in filter media, membranes, and backwash sludge. Workers who handle these materials during maintenance or disposal face exposure similar to that in oil and gas operations.

Waste handling facilities that receive NORM-contaminated materials also face exposure risks.

Whether through direct handling of incoming waste or through secondary contamination of equipment and vehicles, workers at disposal sites require the same protections as those at generating facilities.

Real Exposure Scenarios by Task

Understanding exposure requires moving beyond general statements about industries and into specific tasks. The following scenarios describe how workers actually encounter NORM during their regular duties.

Scenario 1: Equipment Cleaning and Descaling

A maintenance crew is assigned to clean scale from the interior of a production separator that has been removed from service. Workers enter the vessel with hand tools and power scrapers to remove the hard, crusty deposits lining the walls.

What Happens

As workers scrape and hammer the scale, it fractures into fine particles. Some particles are large enough to see, but many are respirable, small enough to remain airborne and penetrate deep into the lungs.

The confined space inside the vessel limits ventilation, allowing dust concentrations to build rapidly. Workers breathe this dust continuously throughout the shift.

Exposure Route

Inhalation of airborne radioactive particles is the primary hazard. The radium in scale emits alpha radiation, which cannot penetrate skin but causes concentrated damage when deposited inside lung tissue. Studies of NORM in the zircon industry identify inhalation as the critical pathway for internal exposure.

Risk Level

Equipment cleaning produces the highest acute exposures in the oil and gas industry. When systems are opened for maintenance, workers who were previously protected by closed systems face direct contact with contaminated surfaces.

The fine dust generated during cleaning creates respirable particles that reach the deepest parts of the lung.

Scenario 2: Sludge and Waste Handling

A tank cleaning operation removes accumulated sludge from the bottom of a crude oil storage tank. Workers use vacuum trucks to extract the sludge, then manually clean remaining residues. The sludge is transferred to drums or roll-off bins for disposal.

What Happens

Wet sludge may not appear hazardous, but as it dries during handling and transport, it releases airborne particles.

Workers loading drums, sealing containers, and cleaning equipment encounter these particles. Skin contact with sludge transfers contamination to clothing, which then spreads to vehicle interiors, lunch rooms, and homes.

Exposure Route

Inhalation remains the primary concern, but ingestion and skin contamination become significant during sludge handling.

Workers who eat, drink, or smoke without thoroughly washing transfer radioactive material from hands to mouth. Contaminated clothing worn at home exposes family members who never enter the workplace.

Risk Level

Sludge handling often involves prolonged tasks with multiple workers. The volume of material handled means contamination can spread widely if controls are inadequate. Proper packaging and hygiene facilities are essential to prevent secondary exposures.

Scenario 3: Maintenance, Cutting, and Repair Work

A maintenance crew removes a section of pipe from a production facility. The pipe is cut with an angle grinder to prepare it for transport to the scrap yard. Later, a welder repairs a fitting on a vessel that previously contained scale.

What Happens

Cutting contaminated metal generates fumes and fine dust that become immediately airborne. Grinding sparks carry radioactive particles across the work area.

The welder's torch vaporizes small amounts of material, creating condensation fumes that are easily inhaled. Neither worker sees any visible indication that radiation is present.

A study of equipment repair found that radon discharge of 30 to 50 millicuries into the atmosphere is possible during repair of contaminated equipment. This represents a significant inhalation hazard that requires ventilation controls.

Exposure Route

Inhalation dominates, but skin and clothing contamination also occur. Workers who cut contaminated pipes often end up covered in grinding dust by the end of the job. Without proper change facilities and laundering, this contamination follows them home.

Risk Level

Cutting and welding generate high concentrations of airborne contaminants in the worker's breathing zone. The proximity of the worker's face to the point of generation makes these tasks particularly hazardous. Engineering controls such as local exhaust ventilation are essential.

Scenario 4: Transport, Storage, and Recycling

A truck driver transports drums of NORM-contaminated waste to a disposal facility. At the recycling yard, a loader operator moves piles of scrap metal that includes piping from decommissioned oil facilities.

What Happens

The truck driver may never open the drums, but if containers are not properly sealed, radon gas can accumulate in the trailer. During loading and unloading, workers near open containers face inhalation hazards.

At the recycling yard, the loader operator works in a cab that recirculates air drawn from the scrap pile, potentially concentrating any airborne contamination.

Exposure Route

Inhalation of resuspended dust and radon gas affects transport and recycling workers. The operator who never touches contaminated material directly may still receive significant exposure through the air they breathe.

Risk Level

Secondary exposures in transport and recycling are often overlooked because these workers are not directly handling the source material. However, the concentration of multiple contaminated items in one location creates cumulative hazards.

A scrap yard accepting material from multiple generators may have higher ambient radiation levels than any single generating facility.

Scenario 5: Radiation Survey and Inspection

A radiation safety technician conducts surveys of equipment suspected to contain NORM. They place survey instruments against pipe surfaces, collect samples of scale for laboratory analysis, and mark contaminated areas.

What Happens

During sample collection, the technician disturbs material to access it. Scale that was previously undisturbed becomes airborne. The technician works in close proximity to contaminated surfaces for extended periods, receiving external gamma exposure even when dust is controlled.

Exposure Route

External gamma radiation becomes significant for workers who spend time near large volumes of contaminated material.

While alpha and beta radiation from NORM have short ranges, gamma radiation penetrates and exposes the whole body. A study of potassium processing facilities found external doses ranging from 0.003 to 0.364 mSv per year depending on work conditions.

Risk Level

Survey personnel often work alone, making it essential that they understand the hazards and control their own exposure through time limitation, distance, and shielding where possible.

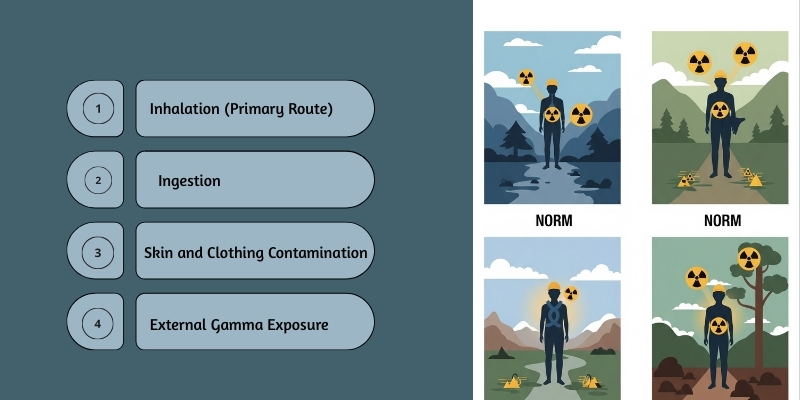

Exposure Routes Explained Simply

For NORM to harm a worker, radioactive material must reach sensitive tissues inside the body. Understanding how this happens helps workers recognize why specific controls matter.

Inhalation (Primary Route)

When NORM becomes airborne as dust or fumes, workers breathe it in. The smallest particles, those invisible to the eye, travel deepest into the lungs. There they lodge against delicate tissue and remain, irradiating the same cells continuously for years.

The size of particles determines where in the respiratory tract they deposit. Respirable particles reach the alveoli where gas exchange occurs, making them the most hazardous.

Ingestion

Workers inadvertently swallow NORM when they eat, drink, or smoke without washing contaminated hands. The material passes through the digestive system, but some fraction crosses into the bloodstream and distributes to organs.

Radium, chemically similar to calcium, concentrates in bone where it irradiates bone marrow and adjacent tissues.

Skin and Clothing Contamination

NORM on skin may not penetrate immediately, but it migrates. Contaminated gloves touch faces. Contaminated coveralls brush against lunch tables.

Workers carry material home on their clothing, exposing family members who never enter the workplace. The Canadian Nuclear Safety Commission emphasizes checking workers for contamination before they leave work areas.

External Gamma Exposure

Unlike alpha and beta radiation, gamma rays pass through skin and expose the whole body. Workers who spend extended periods near large volumes of contaminated material, such as during tank cleaning or waste packaging, accumulate external doses even without inhaling or ingesting anything.

Task → Route → Risk Matrix

The relationship between task, exposure route, and relative risk helps prioritize controls. The following matrix summarizes the scenarios discussed above.

A study of scale residues found that annual effective doses for occasionally exposed workers reached 0.65 mSv per year, exceeding the dose constraint of 0.3 mSv for planned exposure situations. Workers performing cleaning and maintenance tasks receive the highest doses.

Which Jobs Face the Highest Risk?

Within any facility handling NORM, certain roles consistently face elevated exposure. Identifying these roles allows targeted training and controls.

Maintenance Technicians

These workers enter equipment, remove scale, and perform repairs. They work inside confined spaces where dust accumulates, and they spend extended periods in direct contact with contaminated surfaces. Maintenance activities account for the highest peak exposures in most facilities.

Tank Cleaners and Waste Handlers

Workers who remove sludge and package waste face prolonged exposure to material that may become airborne as it dries. They handle drums, operate vacuum equipment, and work in areas where contamination concentrates.

Pipe Fitters and Welders

When equipment is cut or welded, the heat and mechanical force liberate radioactive material directly into the worker's breathing zone. These tasks occur during turnarounds and shutdowns when multiple crews work simultaneously, complicating exposure control.

Scrap Yard Personnel

Loader operators, sorters, and cutters at recycling facilities face exposure from multiple sources. They rarely know which incoming materials contain NORM, making pre-entry surveys essential.

Radiation Safety Staff

Paradoxically, the workers responsible for identifying NORM hazards face exposure through close proximity to contaminated materials during surveys and sampling. Their role requires training to manage their own exposure while performing essential monitoring.

Transportation Workers

Drivers who haul NORM waste may receive exposure from radon accumulation in enclosed trailers and from proximity to loaded containers during loading and unloading.

The common thread across these roles is disturbance. Workers who disturb NORM, whether by scraping, cutting, or simply handling, face the highest risks. Those who work with sealed systems face lower but still measurable external exposure.

When Exposure Peaks (Timeline Thinking)

Exposure to NORM is not constant. It peaks during specific activities and phases of work. Understanding when exposure occurs allows scheduling and controls that protect workers during high-risk periods.

During Shutdowns and Turnarounds

These periods concentrate high-risk activities. Multiple crews enter equipment simultaneously. Scale removal occurs around the clock. The normal barriers that separate workers from NORM are opened, and the disturbance begins.

When Equipment Is First Opened

The moment a vessel is opened after years of service, conditions change. Scale that was stable begins to dry and flake. Dust that was contained becomes airborne. Workers entering immediately after opening face the highest concentrations before ventilation has had time to clear the space.

During Cleaning Operations

The peak of exposure occurs during active cleaning. Every scrape of the tool generates new dust. Every minute spent inside the vessel adds to the cumulative dose. Studies recommend fivefold air exchange to remove residual radon activity from vessels after cleaning.

During Waste Packaging

As cleaned material is bagged, drummed, and loaded, it is handled repeatedly. Each transfer point creates an opportunity for release. Workers packaging waste face prolonged exposure similar to cleaning crews.

During Transport and Disposal

While generally lower than cleaning exposures, transport and disposal create ongoing chronic exposure for workers who handle multiple shipments over time.

The pattern is clear: exposure peaks when NORM is disturbed. Prevention efforts should concentrate on these peak periods with engineering controls, work time limits, and rigorous PPE use.

Controls That Actually Work

Preventing NORM exposure requires applying the hierarchy of controls in order. The National Institute for Occupational Safety and Health defines this hierarchy as elimination, substitution, engineering controls, administrative controls, and personal protective equipment. Each level builds on the one before.

Engineering Controls

The most effective interventions are those that do not rely on worker behaviour. For NORM, engineering controls include:

1. Local exhaust ventilation at points of dust generation

2. Wet methods to suppress dust during cleaning

3. Enclosed systems for handling and packaging

4. Negative pressure containment during vessel entry

5. HEPA filtration for exhaust air

Administrative Controls

These measures change how work is performed:

1. Limiting time workers spend in contaminated areas

2. Establishing exclusion zones around high-risk activities

3. Implementing written procedures for each task

4. Scheduling high-risk work for periods when few workers are present

5. Conducting regular radiation surveys to identify changing conditions

A study of NORM management in the oil and gas industry emphasizes the importance of comprehensive strategies that include monitoring, safe equipment handling, waste control, and worker training.

Personal Protective Equipment

When higher-level controls cannot reduce exposure sufficiently, PPE provides the final layer:

1. Respirators with P100 filters for airborne dust

2. Supplied air respirators for confined space entry

3. Disposable coveralls that prevent clothing contamination

4. Double gloving with appropriate materials

5. Boot covers and rigorous change procedures

PPE must be used within a complete programme that includes fit testing, training, inspection, and proper donning and doffing procedures to prevent cross-contamination.

Monitoring

Without measurement, controls cannot be verified. Monitoring includes:

1. Personal air sampling for airborne radioactivity

2. Area monitoring for gamma radiation levels

3. Surface contamination surveys

4. Bioassay for workers with known or suspected exposures

5. Radon monitoring in enclosed spaces

Sampling methods matter significantly; using inappropriate samplers may underestimate airborne radioactivity concentrations substantially.

Training and Compliance Checklist

Preventing NORM exposure requires systematic action. Use this checklist to verify that your programme addresses all critical elements.

1. Identify NORM-Prone Equipment: Conduct facility-wide surveys to locate where NORM may accumulate. Include all vessels, pipes, tanks, and process streams that handle formation water, mineral ores, or other potential sources.

2. Survey Before Work Begins: Before any maintenance, cleaning, or entry, perform radiation surveys to characterize the hazard. Do not assume that because equipment looks clean, it is free of contamination.

3. Use Wet Methods to Suppress Dust: Where possible, introduce water or other suppressants during cleaning to prevent particles from becoming airborne.

4. Provide Local Exhaust Ventilation: At points of dust generation, use ventilation that captures contaminants at the source before they reach the worker's breathing zone.

5. Implement Time Limits: For high-exposure tasks, limit the time each worker spends in the area. Rotate crews to distribute doses across multiple individuals.

6. Use Appropriate Respiratory Protection: Select respirators based on measured or anticipated airborne concentrations. Ensure all users are fit tested and trained.

7. Provide Change Facilities: Establish clean areas where workers remove contaminated clothing before leaving. Prevent take-home contamination through rigorous hygiene.

8. Dispose of Waste Properly: Ship all NORM waste to facilities authorized to receive radioactive materials. Maintain manifests and disposal records.

9. Document Everything: Maintain records of surveys, training, air monitoring, and disposal. These documents demonstrate due diligence and support continuous improvement.

10. Train All Affected Workers: Ensure every worker who may encounter NORM understands the hazards, the controls, and their role in maintaining safety.

Canada Safety Training Centre offers comprehensive NORM awareness training and radiation safety training that equip workers with essential knowledge.

Frequently Asked Questions About NORM Exposure

How do workers get exposed to NORM?

Workers get exposed primarily by inhaling dust or fumes generated during activities that disturb NORM, such as cleaning scale from equipment, cutting contaminated metal, or handling dried sludge. External gamma exposure and skin contamination also occur.

Which jobs are the highest risk?

Maintenance technicians, tank cleaners, pipe fitters, welders, scrap yard workers, and waste handlers face the highest risks because they work directly with contaminated materials and disturb them during routine tasks.

Is exposure immediate or cumulative?

Both. Acute exposures can occur during specific high-risk tasks, but the health effects result from cumulative dose received over years. Radiation damage accumulates, and cancers appear decades after exposure.

How does NORM enter the body?

Inhalation is the primary route, depositing radioactive particles deep in the lungs. Ingestion from contaminated hands and absorption through broken skin also occur. Radon gas, released from some NORM materials, is also inhaled.

What PPE is most effective?

For airborne hazards, elastomeric half-face or full-face respirators with P100 filters provide protection when fit tested and worn correctly. Disposable coveralls prevent clothing contamination, and gloves protect hands. Supplied air respirators may be required for confined space entry.

How is contamination detected?

Radiation survey instruments detect gamma radiation from NORM. Air sampling measures airborne concentrations. Surface smears detect removable contamination. Laboratory analysis identifies specific radionuclides and their concentrations.

Can brief exposure be dangerous?

Brief high exposures during intense tasks like confined space cleaning can deliver significant dose. More commonly, the danger comes from repeated exposures over years. Both require control.

What about exposure to families?

Take-home contamination occurs when workers wear contaminated clothing home or carry material on skin, hair, or shoes. Proper change facilities and showering prevent this secondary exposure.

Conclusion

The pipe fitter scraping scale inside the separator vessel does not see the hazard. The cancer that may claim his life twenty years from now will not be linked to this shift by any obvious chain of evidence.

But the connection will be real. This scenario illustrates a primary pathway for NORM exposure to workers in the oil and gas industry.

The reality of NORM exposure is disastrous. It is invisible, silent, and delayed in its effects. It happens during ordinary tasks that workers have performed for decades without apparent consequence.

But prevention is achievable.

1.  When employers identify where NORM accumulates, they can survey before work begins.

2. When they understand which tasks create exposure, they can apply engineering controls at the source.

3. When they train workers to recognize hazards, they build a workforce that protects itself.

4. When they monitor and document, they verify that controls work and improve them when they do not.

The key insight from this examination is simple: exposure is task-based, not location-based.

Identify the task before the exposure happens. Know which jobs disturb NORM. Apply controls at the point of disturbance. Train workers to understand not just that NORM exists, but exactly how they might encounter it in their specific roles.

This is the difference between awareness that informs and awareness that protects.
