Asbestos is a group of naturally occurring minerals known for their durability and heat resistance. It has been widely used in construction and manufacturing, especially in insulation, flooring, and roofing.
However, due to its serious health risks, including lung cancer and mesothelioma, the use of asbestos has significantly declined.
In Canada, 2022 statistics reported 472 deaths from mesothelioma. Three hundred seventy-seven of these were men, and 95 were women. These statistics highlight the importance of recognizing and managing asbestos exposure.
Identifying what asbestos looks like is crucial for maintaining safety in older buildings, particularly those constructed before the 1990s when the material was commonly used.
Many Canadians may not realize that asbestos can be found in various products, including textured ceiling tiles, insulation, and flooring.
The appearance of asbestos can vary widely depending on the product, making it essential to know what to look for.
This blog will explore what asbestos looks like in different materials and provide practical tips on detecting it safely.
Whether you’re a homeowner planning renovations, a business owner, or simply curious about asbestos in your environment, understanding its characteristics is essential for protecting your health and the health of those around you.
Identifying asbestos early can prevent exposure and help you take the necessary steps to ensure a safe living or working space.
What is Asbestos?
Asbestos is a naturally occurring group of silicate minerals composed of thin, needle-like fibers.
Known for its resistance to heat, fire, and chemical damage, asbestos has been used in various industries, especially construction and manufacturing, for decades.
There are six main types of asbestos, but the three most common are chrysotile, amosite, and crocidolite:
- Chrysotile: Also known as white asbestos, chrysotile is the most widely used type, accounting for about 95% of asbestos found in buildings. It is known for its flexibility and heat resistance, making it popular in roofing, insulation, and brake linings.
- Amosite: Often referred to as brown asbestos, amosite was commonly used in pipe insulation, cement sheets, and insulating boards. It is less flexible than chrysotile but highly resistant to heat and fire.
- Crocidolite: Known as blue asbestos, crocidolite has excellent heat resistance and tensile strength. It was primarily used in high-temperature insulation and has been linked to severe health risks, making it one of the most dangerous forms of asbestos.
Historically, asbestos was known for its insulating properties and strength, leading to its widespread use in construction materials, automotive parts, and textiles.
However, as health risks became more apparent, mainly its association with lung diseases like asbestosis and mesothelioma, many countries, including Canada, began to restrict and ban its use.
Despite these regulations, older buildings still pose a risk, making it essential to understand what asbestos is and how to identify it.
Visual Characteristics of Asbestos
Recognizing the visual characteristics of asbestos is crucial for safety, especially in older buildings where asbestos-containing materials (ACMs) may still be present.
Asbestos fibers are typically not visible to the naked eye, but there are specific features that can help in identification:
- General Appearance: Asbestos fibers can vary in appearance depending on the type and product. They are generally thin and long, often looking like fine, white hairs. When asbestos materials are disturbed, they may release these fibers into the air, which can be hazardous when inhaled.
- Raw Asbestos: In its raw form, asbestos can be a greyish or white substance that resembles fluffy cotton or wool. This is particularly true for chrysotile, which is softer and more pliable. Conversely, the opposite and crocidolite may appear more brittle and can take on a more blue or brown hue.
Forms of Asbestos: Asbestos is found in various forms, including:
- Insulation: Often encountered in attics and around pipes, asbestos insulation can appear as batts or loose fill.
- Flooring: Asbestos may be present in vinyl tiles or the backing of sheet flooring.
- Textured Surfaces: Popcorn ceilings and textured wall finishes may contain asbestos fibers.
To detect asbestos safely, it's important to avoid disturbing suspected materials. If you suspect asbestos is present, it's best to consult a certified professional who can conduct an appropriate survey and testing.
Common Asbestos-Containing Materials
Understanding common asbestos-containing materials (ACMs) is crucial for identifying potential hazards in older buildings and ensuring safety during renovations or repairs.
Many of these materials may look innocuous, making awareness and caution essential. Here are the details of common ACMs.

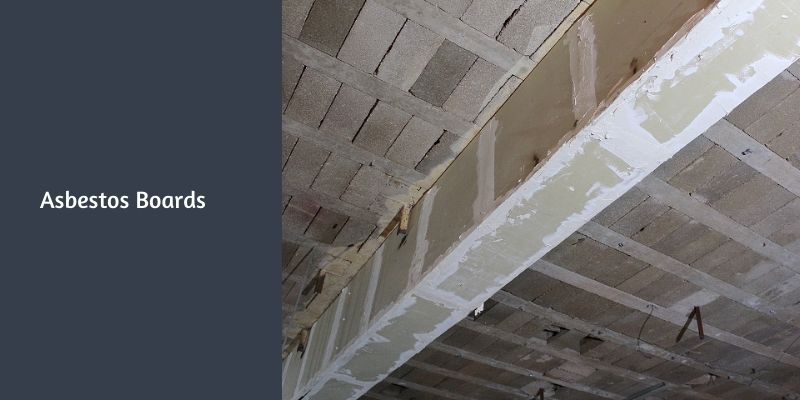

1. Asbestos Boards
Asbestos boards are a building material used for various applications, including wall panels, ceiling tiles, and fireproofing.
These boards typically contain a significant percentage of asbestos, which contributes to their fire resistance and strength. The most common type of asbestos used in boards is chrysotile, but amosite may also be present.
Description and Asbestos Content
Asbestos boards generally include cement and asbestos fibers, resulting in a rigid and durable product.
Depending on the manufacturer and purpose, asbestos content can range from 10% to 50%. The boards may be in different thicknesses and sizes, often resembling standard drywall.
Visual Characteristics
Visually, asbestos boards can appear in various colors, typically grey, white, or beige. The surface may be smooth or textured and can have a fibrous texture when broken.
When inspecting, look for signs of wear, damage, or cracking, which can release hazardous fibers into the air.
If asbestos boards are present in a building, it is crucial to handle them with care, as disturbing them can lead to fiber release.

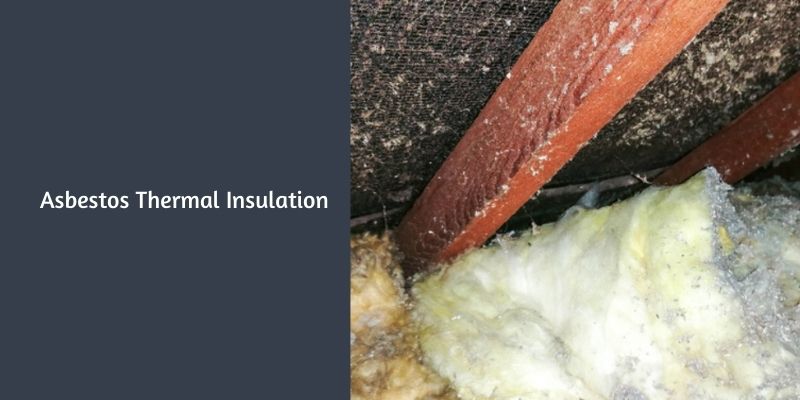

2. Asbestos Thermal Insulation
Due to its excellent heat resistance and insulating properties, asbestos thermal insulation was widely used in buildings and industrial applications. It can be found in various forms, such as pipe, boiler, and duct insulation.
Overview of Types and Colors
There are several types of asbestos insulation, including:
- Pre-formed Pipe Insulation: Often found on steam and hot water pipes, this insulation usually comes in pre-formed sections that wrap around the pipes. It can be white, grey, or brown.
- Sprayed Insulation: This type is sprayed onto surfaces for thermal protection. It typically appears rough, white, or grey texture and is often fibrous.
- Loose-fill Insulation: Commonly found in attics and walls, this type resembles fluffy white or grey material, often described as looking like cotton or shredded paper.
Identification Tips
Identifying asbestos thermal insulation can be challenging, as it may be hidden behind walls or ceilings. Key tips for identification include looking for:
- Age: Buildings constructed before the 1990s are more likely to contain asbestos insulation.
- Appearance: Look for the characteristic fibrous texture and color variations mentioned above.
- Damage: Cracked or crumbling insulation may indicate the presence of asbestos, as disturbed material poses a higher risk of fiber release.
Understanding these common materials is essential in ensuring safety in environments where asbestos may be present.

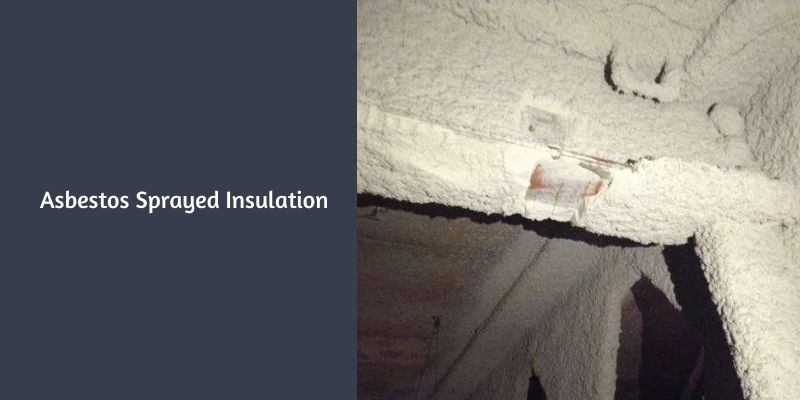

3. Asbestos Sprayed Insulation
Asbestos-sprayed insulation is a type of thermal insulation widely used in buildings and industrial settings for its fire-resistant properties and effectiveness in reducing heat loss.
This insulation is applied by spraying a mixture of asbestos fibers and a binder onto surfaces such as beams, ceilings, and pipes. Its ability to conform to irregular shapes made it popular for various applications.
Features and Common Uses
- Fire Resistance: One of the key features of sprayed asbestos insulation is its excellent fire-resistance qualities. It can withstand high temperatures, making it a preferred choice for areas where fire safety is a concern.
- Acoustic Properties: In addition to thermal insulation, sprayed asbestos also provides soundproofing benefits, helping to minimize noise transmission between spaces.
- Versatility: This type of insulation can be applied to various surfaces, including metal, concrete, and wooden structures. Its spray application allows for easy coverage of complex shapes and hard-to-reach areas.
Common Uses
Asbestos-sprayed insulation was commonly used in commercial buildings, schools, hospitals, and industrial facilities. It was often applied to:
- Structural Steel: To provide fire protection to steel beams and columns, reducing the risk of structural failure during a fire.
- Ceilings: To create a thermal barrier and enhance sound absorption in auditoriums, theaters, and other public spaces.
- Pipes and Ducts: To prevent heat loss and condensation in heating and ventilation systems.
Although sprayed asbestos insulation has been banned in many countries due to health risks, it may still be present in older buildings. Proper identification and management by certified professionals are essential to control potential asbestos exposure.

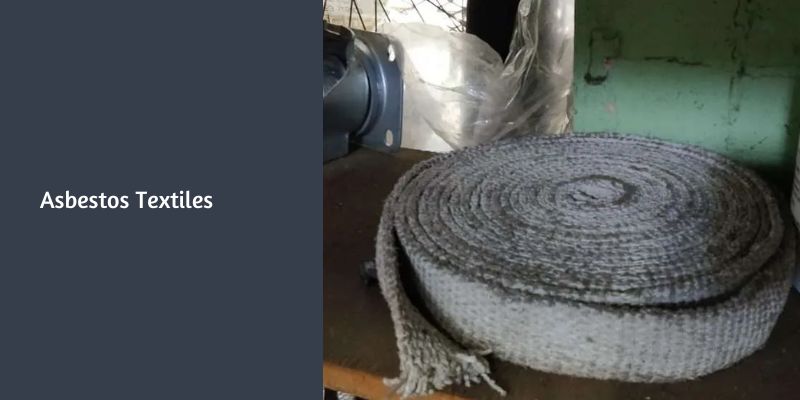

4. Asbestos Textiles
Asbestos textiles are another category of materials that historically contained asbestos fibers.
These textiles were manufactured for their heat and fire resistance, making them suitable for various industrial and commercial applications.
Asbestos textiles can be found in several forms, including cloth, rope, and paper.
Identification of Textiles
- Appearance: Asbestos textiles often appear as thick, heavy fabrics that may be grey, white, or off-white in color. They may have a fibrous texture that is slightly rough to the touch. When examining these materials, look for a distinctive sheen that can indicate the presence of asbestos fibers.
- Common Forms: Common forms of asbestos textiles include:
- Cloth: Used in protective clothing, insulation wraps, and blankets, asbestos cloth can be woven tightly and is often durable.
- Rope: Asbestos rope is typically thick and fibrous and is used in high-temperature applications, such as sealing gaps in furnaces, boilers, and fireplaces.
- Paper: Asbestos paper, which may have been used for insulation, gaskets, or other applications, usually appears thin and may be found in layers.
Applications
Asbestos textiles were utilized in a variety of industries, including:
- Firefighting Gear: Protective clothing for firefighters often contains asbestos for its heat-resistant properties.
- Industrial Applications: Asbestos textiles were commonly used in industrial settings to insulate pipes, boilers, and furnaces.
- Automotive Components: Asbestos was also used in brake linings and clutches due to its ability to withstand high temperatures and friction.
Proper identification and management by trained professionals are critical to ensuring safety and compliance with regulations regarding asbestos-containing materials.

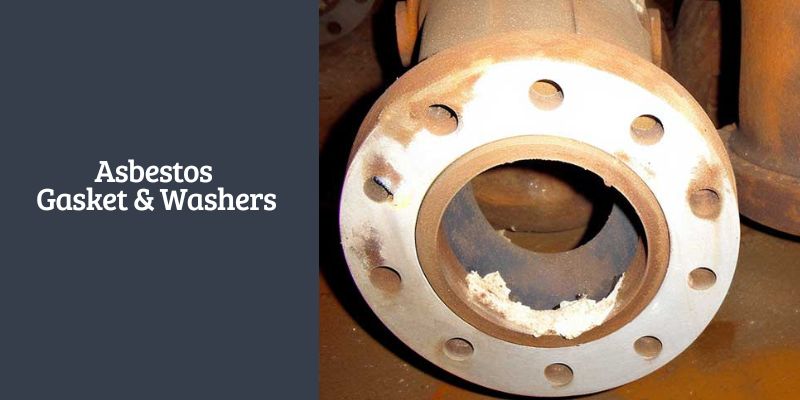

5. Asbestos Gaskets and Washers
Asbestos gaskets and washers are components used in various mechanical applications, primarily for sealing.
These materials were favored for their durability, heat resistance, and ability to create airtight and watertight seals.
Due to their unique properties, asbestos gaskets and washers were widely used in automotive, plumbing, and construction industries.
Visual Characteristics and Common Colors
- Appearance: Asbestos gaskets typically have a fibrous texture and can appear in various shapes, including circular, rectangular, or custom designs. They may also come in different thicknesses, depending on their application. When handling these materials, one might notice that they feel slightly rough or textured due to the fibrous nature of asbestos.
- Common Colors: Asbestos gaskets and washers are often grey, but they can also be found in shades of white, brown, or black. The color can vary depending on the type of asbestos used and the manufacturing process. For instance, chrysotile (white asbestos) gaskets may be lighter in color, while those containing amosite (brown asbestos) may exhibit darker hues.
- Signs of Age: Older gaskets may show signs of wear, such as fraying, cracking, or discoloration. These signs can indicate that the gasket may be releasing asbestos fibers, posing a risk of exposure if disturbed.
Due to the health risks associated with asbestos exposure, including lung diseases and cancers, it is crucial to manage these materials properly.
If asbestos gaskets or washers are found in older machinery or construction, it is essential to consult with a professional for assessment and potential removal.

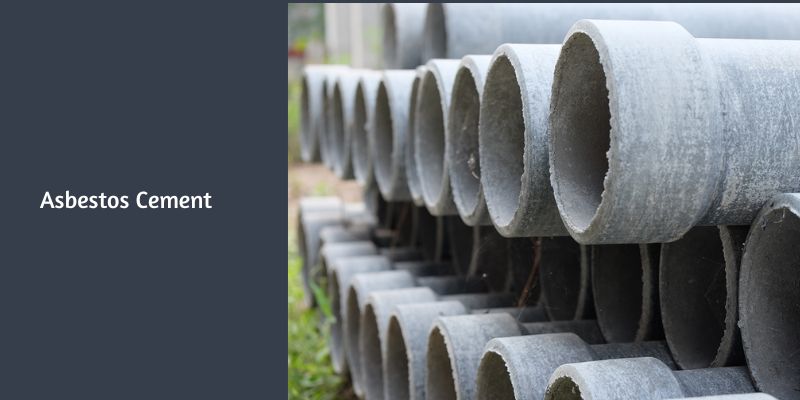

6. Asbestos Cement
Asbestos cement is a composite material made by mixing cement with asbestos fibers.
This combination creates a durable product that is strong and resistant to heat, making it suitable for various construction applications.
Asbestos cement was widely used in the building industry due to its versatility and low cost.
Overview of Products Made from Asbestos Cement
Products: Asbestos cement products include:
- Roofing Sheets: Often used in residential and commercial buildings, asbestos cement roofing sheets provide effective weather resistance and insulation. They may appear in various colors, including grey and white, and mimic traditional shingles' look.
- Pipes: Asbestos cement pipes were commonly used for water supply, sewage, and drainage systems. They are known for their strength and resistance to corrosion. These pipes typically appear grey and have a smooth surface.
- Siding: Asbestos cement siding is another common application for its durability and low maintenance. It can resemble traditional wood siding but offers superior fire resistance.
- Benefits: The primary advantages of asbestos cement products include their fire resistance, longevity, and low cost. Adding asbestos fibers enhances the material's strength, making it suitable for various construction applications.
- Health Concerns: Although asbestos cement is considered less hazardous than other asbestos-containing materials, the potential for fiber release still exists, particularly if the material is damaged or disturbed during renovations. Handling asbestos cement products carefully and consulting with professionals for testing and remediation is important.

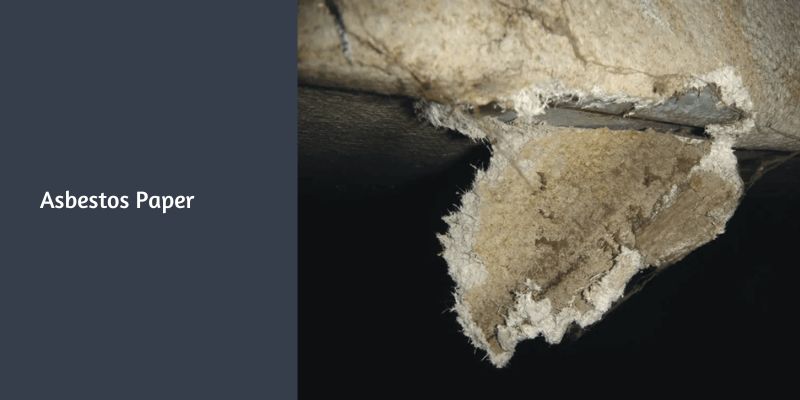

7. Asbestos Paper
Asbestos paper is a material that incorporates asbestos fibers into a paper-like base.
This product was utilized primarily for its fire-resistant and insulating properties, making it suitable for various industrial and construction applications.
Asbestos paper was often used when heat and flame resistance were critical.
Description and Identification Tips
- Appearance: Asbestos paper generally has a white, grey, or off-white color and can appear smooth or slightly textured. The thickness can vary, but it is usually thin and flexible. Depending on the application, it might be layered or treated with a binder to enhance its durability.
- Common Uses: Asbestos paper was widely used as an insulation material in electrical applications, such as insulating wires and cables. It was also found in constructing fireproof barriers and gaskets and as a lining material for various industrial components.
Identification Tips:
- Visual Inspection: When identifying asbestos paper, look for its distinctive fibrous texture and layered appearance. It can often be mistaken for standard paper or cardboard, so careful examination is necessary.
- Conducting Tests: Due to the potential for confusion with non-asbestos-containing materials, laboratory testing is the most reliable way to confirm the presence of asbestos in paper products. If you suspect the paper may contain asbestos, it is crucial to consult a professional who can safely take samples and perform the necessary analysis.
- Manufacturer Labels: Check for any labeling or documentation from the manufacturer. Some products may have specific indications of asbestos, which can aid identification.

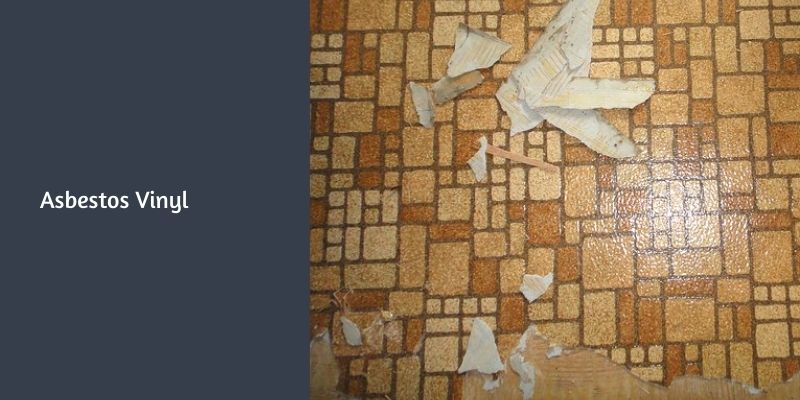

8. Asbestos Vinyl
Asbestos vinyl is a composite material combining asbestos fibers into vinyl products, particularly in flooring applications.
This type of flooring was popular in many homes and commercial spaces due to its aesthetic appeal and affordability.
Characteristics and Common Uses in Flooring
- Appearance: Asbestos vinyl flooring can copy the appearance of various materials, such as tiles or wood. It is available in various colors and patterns, often glossy. The presence of asbestos typically gives the flooring a thicker, more resilient quality compared to non-asbestos vinyl.
- Residential Flooring: Asbestos vinyl was commonly installed in homes, particularly in kitchens and bathrooms, due to its water resistance and ease of maintenance. The material was valued for its longevity and was often chosen for its cost-effectiveness.
- Commercial Spaces: It was also widely used in commercial buildings, schools, and hospitals, where high-traffic areas required durable flooring solutions.
- Health Concerns: While asbestos vinyl flooring is considered less hazardous than other asbestos-containing materials, it can still pose risks if damaged or improperly handled. During installation, removal, or renovation, asbestos fibers can be released into the air, increasing the risk of exposure.
Identification Tips:
- Visual Characteristics: When inspecting for asbestos vinyl, look for the thickness of the material and any signs of wear or damage. Distressed areas may indicate the potential for fiber release.
- Manufacturer Information: If available, review the manufacturer's specifications or documentation, as many products from the 1970s and earlier may contain asbestos.
If asbestos vinyl is suspected in a building, consulting with a qualified professional for assessment and potential testing is essential. Proper management is crucial to ensure safety and compliance with health regulations regarding asbestos-containing materials.

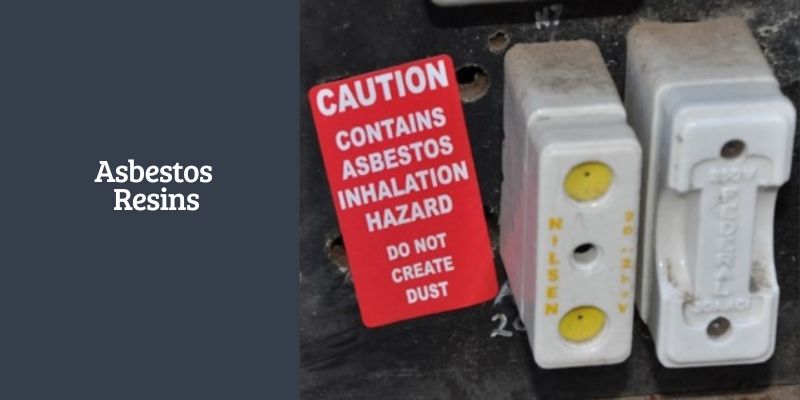

9. Asbestos Resin
Asbestos resin is a composite material that combines asbestos fibers with synthetic polymer resin.
This combination was popular in various industrial applications due to the enhanced properties of the resulting material, such as heat resistance, strength, and durability.
Asbestos resin was often used in products requiring high thermal insulation and structural integrity.
Identification and Visual Characteristics
- Appearance: Asbestos resin typically has a smooth, glossy finish, often resembling plastic or fiberglass materials. The color can vary, with common shades including grey, white, and off-white. When broken, it may reveal a fibrous interior, indicating the presence of asbestos.
- Forms and Products: Asbestos resin is commonly found in products like:
- Electrical Insulation: Used to insulate electrical components due to its fire-resistant properties.
- Construction Materials: Found in certain types of building materials, such as composite panels, pipes, and fittings that require additional durability and insulation.
- Automotive Parts: Employed in automotive applications for brake pads and linings due to their heat-resistant qualities.
- Identification Tips:
- Visual Inspection: When examining materials suspected to contain asbestos resin, look for a hard, smooth surface that feels dense and durable.
- Testing: Laboratory testing is the most effective way to confirm the presence of asbestos. If you suspect a product contains asbestos resin, seek a professional to collect samples for safe analysis.
As with other asbestos-containing materials, proper handling and management are essential to minimize exposure risks, particularly during renovations or demolitions.

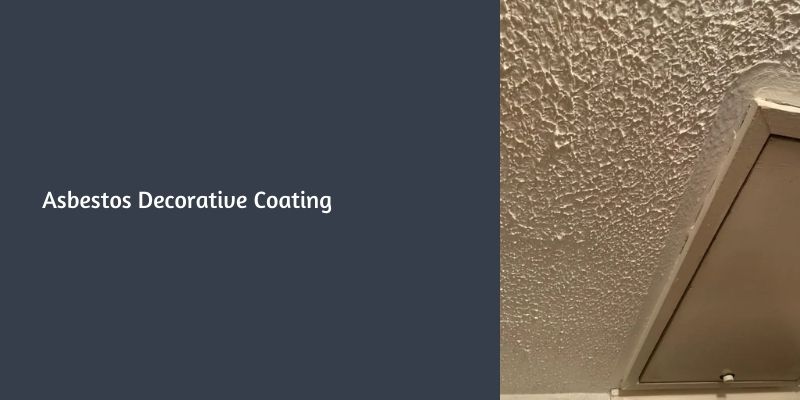

10. Asbestos Decorative Coating
Asbestos decorative coating is a type of finishing material containing asbestos fibers. It provides texture and aesthetic appeal to walls and ceilings.
Due to its unique properties, this type of coating was popular in construction, especially from the 1950s to the 1980s.
Description and Common Applications
- Appearance: Asbestos decorative coatings can have various textures and finishes, ranging from smooth to heavily textured. They may resemble stucco or popcorn ceilings, often in off-white, cream, or light grey colors. The coating is typically sprayed or troweled onto surfaces, creating a visually appealing finish that can also help hide imperfections in the underlying structure.
- Interior Finishing: This coating was often used in residential homes and commercial buildings for decorative ceilings and walls. Its ability to create an attractive finish while providing some fire resistance made it a popular choice.
- Soundproofing: In addition to their aesthetic qualities, asbestos decorative coatings were sometimes used for their soundproofing properties, which helped reduce noise transmission between rooms.
Due to the potential risks associated with asbestos exposure, handling asbestos decorative coatings carefully and following appropriate safety protocols during any renovation or repair work is essential.
How to Identify Asbestos
Identifying asbestos in materials is crucial for ensuring safety, especially in older buildings.
Asbestos can be found in various construction materials, and recognizing its presence can prevent exposure-related health hazards.
Key Indicators to Look For in Materials
- Age of the Building: Asbestos was widely used in construction before the 1980s. If your building was constructed during this period, it will likely contain asbestos.
- Common Materials: Look for insulation, ceiling tiles, floor tiles, roofing shingles, and textured paints. Asbestos is often mixed with other materials, making it difficult to identify visually.
- Visual Characteristics: Asbestos-containing materials can appear as white or grey fibers, often fibrous or fluffy. If the material crumbles easily or is powdery, it may contain asbestos.
Importance of Professional Testing and Identification: Although there are indicators to look for, confirming the presence of asbestos requires laboratory testing.
Certified professionals have the training and equipment to safely collect samples without risking exposure.
They can perform detailed analyses, determining whether asbestos is present and advising on proper handling or removal.
Warning Signs of Asbestos Contamination
- Damage or Disturbance: If materials are deteriorating, damaged, or disturbed, this can release asbestos fibers into the air.
- Unusual Dust: The presence of fibrous, chalky dust in areas where materials have been disturbed can indicate asbestos contamination.
Proper asbestos awareness training is crucial to prevent accidental exposure. Only qualified professionals should conduct inspections, sampling, and removal to ensure safety and compliance with regulations.
Health Risks Associated with Asbestos
Asbestos exposure poses serious health risks that can have devastating consequences.
Understanding these risks is essential for anyone involved in constructing, renovating, or maintaining buildings that may contain asbestos.
Overview of Diseases Caused by Asbestos Exposure
- Mesothelioma: This is a rare and aggressive cancer primarily associated with asbestos exposure. It affects the lining of the lungs, abdomen, or heart, often leading to severe respiratory issues and a poor prognosis.
- Asbestosis: This chronic lung disease occurs when asbestos fibers are inhaled, causing scarring of lung tissue. Symptoms include shortness of breath, coughing, and chest pain. Asbestosis can lead to complications like respiratory failure.
- Lung Cancer: Long-term exposure to asbestos significantly increases the risk of developing lung cancer, especially among smokers.

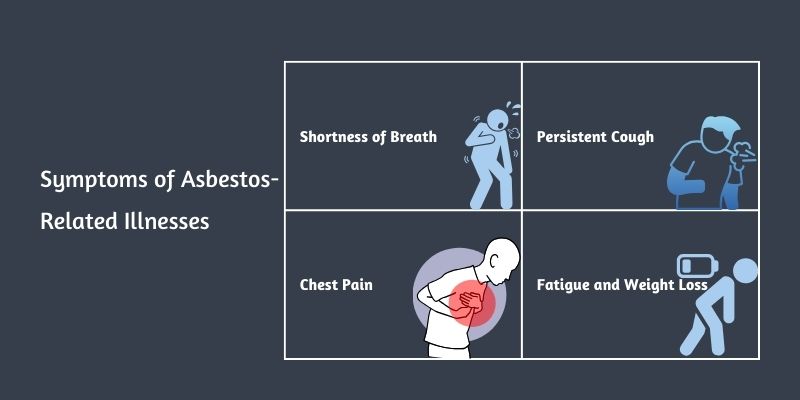

Symptoms of Asbestos-Related Illnesses
- Shortness of Breath: Difficulty breathing can be an early sign of asbestos-related disease.
- Persistent Cough: A chronic cough that does not go away can indicate lung problems.
- Chest Pain: Discomfort or pain in the chest area may be associated with lung diseases linked to asbestos exposure.
- Fatigue and Weight Loss: Unexplained fatigue or significant weight loss can signal serious health issues.
The symptoms of asbestos-related illnesses often do not appear until many years after exposure, making early detection and prevention critical.
If you suspect asbestos exposure, seek medical advice promptly to evaluate your health and receive appropriate care.
Awareness and understanding of these health risks are essential for protecting yourself and others from the dangers associated with asbestos.
FAQs
What color is asbestos usually?
Depending on the type, asbestos can appear in various colors. The most common type, chrysotile, is typically white or cream.
Other types, like amosite, can be brown, while crocidolite may appear blue. When mixed with other materials, the fibers may also look grayish or green.
How do you know if you have asbestos?
To determine if your building has asbestos, look for materials installed before the 1980s, such as insulation, ceiling tiles, or floor tiles.
If you suspect the presence of asbestos, the most reliable method is to hire a certified professional to conduct a thorough inspection and collect samples for laboratory testing.
How severe is one-time asbestos exposure?
One-time asbestos exposure is generally considered less risky than repeated or prolonged exposure.
However, even a single exposure can be serious, particularly if it involves inhaling many fibers.
Long-term health risks, including lung cancer and asbestosis, can develop years later, so it is essential to monitor any symptoms over time.
How do you know if you touched asbestos?
You may be unable to tell if you've touched asbestos just by looking at it, as the fibers are often microscopic.
If you've been in an area where asbestos-containing materials are disturbed or damaged, and you notice fibrous dust, there's a risk you may have come into contact with asbestos.
If you suspect exposure, it’s advisable to consult a health professional.
What does asbestos contamination look like?
Asbestos contamination often appears as fine, fibrous dust or powder in areas where asbestos materials have been damaged or disturbed.
It can have a fluffy or powdery texture and may settle on surfaces, creating a visible accumulation. If you see any unusual dust or debris in older buildings, it may indicate potential asbestos contamination.
Conclusion
Recognizing asbestos in buildings is essential for ensuring health and safety. This is the main reason you need to know what asbestos looks like and the dangers associated with its exposure.
Asbestos exposure can lead to serious health issues, including lung cancer, asbestosis, and mesothelioma, which often do not manifest until years later.
By being aware of the materials that may contain asbestos and understanding its visual characteristics, you can take crucial steps to protect yourself and others.
If you suspect the presence of asbestos in your home or workplace, it’s vital to seek professional help.
Certified asbestos surveyors have the expertise and equipment to identify and assess risks associated with asbestos exposure.
They can conduct thorough inspections, collect samples safely, and advise you on the best course of action, whether managing, removing, or containing asbestos materials.
Proactive measures, including professional inspections and timely removal, can significantly reduce the risk of asbestos exposure and safeguard the well-being of you and your loved ones.
