Blinding and deblinding—while critical for isolation—are high-risk operations that have led to worker injuries and equipment damage when mishandled. These tasks may seem routine, but they’re far from risk-free.

In fact, over the past decade, several incidents across Canada’s oil, gas, and chemical sectors have been linked to improper blinding and deblinding practices—some resulting in serious injuries and costly shutdowns.

Blinding means placing a solid metal plate or blind flange to isolate a section of pipe or equipment.

Deblinding is the reverse—removing that plate to bring the system back into service. These steps are essential for safely inspecting, repairing, or cleaning pressurized systems.

But when done without the right tools, training, or precautions, the results can be dangerous.

According to the Canadian Centre for Occupational Health & Safety report, maintenance work on pressurized systems—especially involving line openings—remains a top cause of confined space and chemical exposure incidents.

That’s why it’s essential to treat blinding and deblinding with the same level of care as any high-risk job.

In this blog, we’ll break down the real hazards of blinding and deblinding, list the tools you need, and walk you through safety steps that can save lives.

Whether you’re a safety supervisor, technician, or maintenance worker, this guide will help you prevent common mistakes and keep your team safe on the job.

What are Blinding and Deblinding?

Blinding is the process of inserting a solid barrier—such as a blind flange, spade, or spectacle blind—into a pipeline or equipment connection to physically block the flow of gas, liquid, or other substances.

This ensures that no material can pass through that part of the system during maintenance or inspection.

These barriers are typically installed between flanges and are designed to handle system pressure, preventing accidental release of hazardous substances.

Deblinding, on the other hand, is the safe removal of that barrier once the maintenance or inspection is complete. It restores the flow within the system and returns the equipment to normal operating conditions.

Blinding and deblinding are essential parts of mechanical isolation. While valves are often used to stop flow, they are not always 100% reliable—especially if they leak or fail. That’s why physical barriers like blinds are necessary.

In fact, many Canadian workplaces follow CSA Z460 standards and OH&S regulations that require physical isolation during lockout/tagout (LOTO) procedures for high-risk systems.

By isolating a section of equipment with a blind, workers can safely perform tasks without the risk of chemical exposure, burns, or pressure-related injuries.

These steps are especially important in industries like oil and gas, manufacturing, and chemical processing, where system pressures and fluid hazards can be extremely dangerous.

Key Hazards During Blinding & Deblinding

Blinding and deblinding are not just routine maintenance tasks—they involve serious risks that can lead to injury or even fatalities if not done correctly. Below are the key hazards workers face during these operations:

1. Unexpected Pressure Release: One of the most dangerous risks is the sudden release of pressurized gas or liquid when a line isn’t fully depressurized. This can result in burns, chemical exposure, or being struck by high-velocity material.
2. Stored Energy: Even if a system appears shut down, trapped pressure, thermal energy, or hydraulic force can still be present. When releasing a blind or loosening a flange, this energy can be violently discharged.
3. Toxic or Flammable Gas Exposure: In industries like oil, gas, and chemical processing, opening a line can expose workers to harmful substances such as hydrogen sulfide (H₂S), ammonia, or hydrocarbons—posing inhalation, fire, or explosion hazards.
4. Equipment Failure: Faulty valves, worn-out gaskets, or damaged blind plates can lead to seal failure or sudden leaks. This often happens when blinds are reused without proper inspection.
5. Pinch or Crush Injuries: Workers’ hands and fingers are at risk when aligning heavy flanges or inserting/removing blinds without proper supports or tools.
6. Falls: Many blinding operations occur at heights or awkward angles. Without proper scaffolding, fall protection, or secure footing, workers may lose balance or fall during the task.
7. Unauthorized Entry or Barrier Failure: If someone removes a blind without proper clearance, or if a blind is not correctly installed, dangerous leaks or bursts can occur—especially in shared work zones.
8. Human Error: Using the wrong tools, working with a damaged blind, or skipping independent verification are common mistakes that bypass critical safety steps. These shortcuts can have severe consequences.

Recognizing these hazards is the first step in building a safer work process. Proper training, verification, and communication are essential to prevent incidents during blinding and deblinding tasks.

Tools & Equipment Needed

Performing blinding and deblinding safely requires the right tools—not just for efficiency, but to protect workers from serious hazards. Below is a detailed list of essential equipment:

Blind Flanges or Spade Blinds: These solid plates are inserted between pipe flanges to block flow completely. They must match the pressure rating and size of the system.

1. Spectacle Blinds: These are two-piece devices—one side solid (to blind) and one open (to allow flow)—joined by a handle. They're ideal for systems requiring frequent isolation and re-connection.
2. Spanners and Wrenches: Used to tighten or loosen bolts during flange disassembly. Impact wrenches are often preferred for large or corroded bolts due to their high torque output.
3. Flange Spreaders: Mechanical or hydraulic tools that help separate flanges safely without prying, reducing the risk of damage or injury.
4. Crowbars or Pry Bars: Used cautiously when manual leverage is needed to help position flanges or blinds, especially in tight or corroded areas.
5. Bolts and Gaskets: New bolts and gaskets should always be used when reinstalling flanges. Reusing damaged components can lead to leaks or system failure.
6. Lifting Devices or Chain Hoists: For handling heavy blinds or working in overhead areas where manual lifting could cause strain or injury.

Certified, non-sparking tools are crucial—especially in areas where flammable gases may be present. Non-sparking tools (typically made from brass, bronze, or aluminum-bronze) reduce the risk of ignition from accidental sparks.

All tools should be inspected before use and handled by trained personnel. Using the correct, well-maintained equipment is a key part of keeping blinding and deblinding operations safe and compliant.

Step-by-Step Blinding Procedure

Blinding is a high-risk task that requires a structured approach. A simple mistake—like skipping a gas test or using the wrong blind—can lead to pressure release, chemical exposure, or even fire.

That’s why each stage of the blinding process must be clearly planned, executed, and verified by trained personnel.

Below, we break down the blinding procedure into three main phases: planning, preparation, and installation.

Each step follows regulatory standards like CSA Z460 (Control of Hazardous Energy) and aligns with common industry practices used across Canadian worksites, particularly in oil, gas, and processing industries.

Planning & Risk Assessment

Before any physical work begins, detailed planning is essential. Start by reviewing P&ID (Piping and Instrumentation Diagrams) to pinpoint the correct isolation points.

1. Make sure the selected blind matches the line’s pressure class, temperature range, and chemical compatibility. Using the wrong blind can cause seal failure or pressure buildup.
2. Next, engage process engineers to confirm the isolation method and finalize the scope of work. Their review helps identify hidden risks—such as reverse flow, thermal expansion, or backpressure from nearby units.
3. A Job Safety Analysis (JSA) must be completed to outline every step, identify hazards, and assign control measures. Include all team members in the discussion to ensure nothing is missed.
4. You’ll also need to initiate a Permit to Work (PTW) process, which includes isolating energy sources and testing for flammable gases or vapours—especially in confined spaces or areas with potential chemical exposure.

Proper planning reduces the chance of overlooking small but critical safety details. It also ensures everyone involved understands their role before the task begins.

Preparation and Shutdown

With the permit and risk assessment approved, move to site preparation. Isolate the line using valves and ensure the system is fully depressurized. Don’t assume a valve is holding—physically verify zero energy using pressure gauges or venting.

1. Mark the flange or joint where the blind will be installed. Use tags and locks to prevent accidental re-pressurization.
2. If working at height, set up scaffolding or platforms to provide stable footing. Never rely on ladders alone for prolonged work.
3. Next, inspect all tools and equipment. Look for wear or damage on the blind plate, bolts, flange faces, and gaskets.
4. Even small cracks or corrosion can compromise the seal. Also confirm that non-sparking tools are available if the work area involves flammable gases.

This phase is also a good time to brief the team and assign responsibilities for each part of the job—one person to install, one to spot, and one to verify.

Installation of the Blind

Now it’s time to install the blind. Carefully separate the flanges using a flange spreader or mechanical wedge.

1. Do not use screwdrivers or crowbars that could slip or damage the sealing surface. Insert the blind between flanges, aligning bolt holes correctly.
2. Install bolts in a cross-pattern sequence, and tighten using a torque wrench to ensure even pressure across the blind. Improper tightening can lead to leaks once the system is back online.
3. Once installed, tag the blind with details including date, type, installer’s name, and system status. This ensures traceability and prevents confusion during deblinding.
4. Independent verification is critical—a second technician or supervisor must inspect the installation, confirm it matches the engineering plan, and sign off. Many Canadian worksites follow a dual-check system to comply with occupational health and safety protocols.
5. Only after full verification should the job proceed. Keep documentation of the blind's location, type, and inspection notes. This ensures the team is ready for safe deblinding later on.

By following these steps, the risk of injury, leaks, or unplanned shutdowns is significantly reduced—helping maintain both worker safety and operational integrity.

Step-by-Step Deblinding Procedure

Deblinding—the process of removing a blind flange or plate to restore flow in a system—is just as hazardous as installation. If done without the right precautions, it can result in serious incidents such as pressure bursts, toxic gas exposure, or damage to equipment.

In Canadian industrial settings, these risks are particularly high in oil, chemical, and energy sectors, where line pressures and chemical hazards are significant.

Deblinding is never as simple as “undoing what was done.” It requires careful planning, verification, and precise execution. This section outlines the step-by-step deblinding procedure, including safety checks, removal techniques, and system reassembly.

Following these steps helps ensure a safe return to operations and full compliance with lockout/tagout (LOTO) procedures under Canadian safety standards.

Pre-Removal Checks

Before touching any bolts or blinds, begin with reconfirming system isolation. Even if the system was isolated earlier, conditions can change—valves may leak, pressure can build due to heat, or unexpected backflow may occur.

Use pressure gauges and venting methods to ensure there is no residual pressure in the line.

Check that all hazard controls from the original permit are still in place. This includes:

1. Gas monitoring equipment for detecting flammable or toxic vapours
2. Barriers and signage to prevent unauthorized entry
3. Fall protection systems if the blind is located at height
4. Communication tools for maintaining contact with control room or safety leads

Revalidate the Permit to Work (PTW) and confirm the job scope and sequence. Ensure the entire team is briefed on the steps and their roles.

Don’t assume the work environment is safe just because the blind was installed correctly—double-check every detail.

Safe Removal

Once checks are complete, begin the removal process. Start by loosening bolts gradually—one at a time—starting from the side farthest from the operator.

This allows any remaining pressure to release in a controlled manner, minimizing the risk of a sudden blowout.

Use containment equipment, such as drain pans, catch cloths, or portable vent hoses, to capture any fluids, vapours, or residues that may be trapped between the flanges. In some cases, you may need to use a vacuum system for hazardous substances.

After fully removing the blind, inspect the flange faces for signs of wear, warping, corrosion, or pitting.

Any damage here can lead to leaks once the line is reassembled. Replace gaskets, bolts, or washers as needed to ensure a proper seal.

Use only approved tools for this step—non-sparking equipment is essential in hazardous zones, especially if dealing with hydrocarbon or chemical systems.

Reassembly and Testing

With the blind removed and flange faces cleaned, begin the reassembly process, often referred to as “boxing-up.”

1. Place a new gasket between the flanges and insert bolts in a cross-pattern sequence to ensure even compression. Use a calibrated torque wrench to tighten to the manufacturer’s specifications.
2. Once the flange is reassembled, conduct an integrity test before putting the line back into service. This may involve pressure testing, leak detection (e.g., using soap spray), or running a controlled flow check with the system partially opened.
3. Update the Permit to Work documentation to reflect the removal and reassembly process. Ensure that an independent verifier—such as a supervisor or engineer—confirms the job completion. All tags and locks must be cleared only after full verification.
4. Once verified, coordinate with operations or control room staff to gradually restart the system, monitoring closely for abnormal sounds, pressure spikes, or leaks.

By following these detailed steps, you ensure that deblinding is not only effective but also compliant with Canadian safety standards—keeping workers protected and systems running reliably.

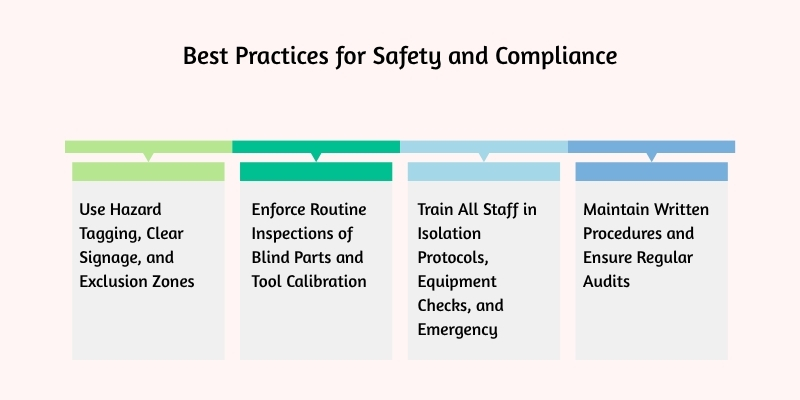

Best Practices for Safety and Compliance

Blinding and deblinding tasks involve high-risk activities that demand strict adherence to safety and compliance standards. While procedures and permits are essential, they must be supported by a safety-first mindset across the workforce.

By implementing best practices into daily operations, employers can reduce hazards, avoid downtime, and meet Canadian regulatory requirements such as CSA Z460, WorkSafeBC, and provincial OH&S legislation.

Below are four critical best practice areas broken down into detailed action points for effective implementation across industrial sites.

Use Hazard Tagging, Clear Signage, and Exclusion Zones

Proper communication of hazards is vital to avoid confusion and unauthorized entry during blinding and deblinding.

1. Use standardized hazard tags to identify lines or systems under maintenance or isolation.
2. Colour-code tags by type of energy (e.g., red for chemical, yellow for mechanical) to enhance visibility and understanding.
3. Place clear signage near all isolation points with wording like “Do Not Operate – System Isolated” or “Blind Installed – Do Not Remove.”
4. Establish physical exclusion zones using barriers, cones, or safety tape to restrict access during installation and removal.
5. Include signage at entry points to work areas for confined spaces, overhead work, or high-pressure zones.
6. Regularly inspect signage and barriers to ensure they are still in place and readable throughout the task.

Instruct all personnel on how to recognize and respect hazard tags and exclusion zones during safety meetings and toolbox talks.

Enforce Routine Inspections of Blind Parts and Tool Calibration

Even the best tools and components can fail if not regularly inspected and maintained.

1. Create a checklist for inspecting blind plates, spades, spectacle blinds, gaskets, and flange faces before and after use.
2. Look for wear signs such as corrosion, warping, cracks, or thinning of the blind material.
3. Discard and replace any damaged or degraded components immediately—never reuse questionable parts.
4. Maintain a tool inventory log with calibration dates and serial numbers for torque wrenches, impact tools, and flange spreaders.
5. Schedule calibration at regular intervals, based on manufacturer guidelines or operational hours (typically every 6–12 months).
6. Tag and isolate uncalibrated tools to prevent them from being used accidentally.
7. Assign a responsible technician to oversee inspections and sign off on all tools and components before job start.

Train All Staff in Isolation Protocols, Equipment Checks, and Emergency Responses

Competent workers are your strongest line of defence against accidents.

1. Provide hands-on LOTO training for all personnel involved in blinding and deblinding, not just written or online instruction.
2. Include mock scenarios during training sessions to simulate pressure releases, equipment failure, and containment actions.
3. Educate workers on lockout/tagout (LOTO) procedures, isolation verification, gas testing, and blind installation standards.
4. Train staff to recognize warning signs of system pressure, leak potential, or equipment degradation.
5. Offer site-specific training that reflects your plant’s unique systems, layouts, and isolation devices.
6. Regularly assess worker competency through quizzes, field checks, or observation during real jobs.

Train all workers—not just the direct crew—in emergency response actions, including evacuation protocols, first aid, and gas alarm interpretation.

Maintain Written Procedures and Ensure Regular Audits

Documented standards create consistency and accountability across teams and shifts.

1. Develop detailed Standard Operating Procedures (SOPs) for blinding and deblinding activities, including drawings, PPE training and checklist, tool requirements, and safety controls.
2. Ensure documents are reviewed and updated annually, especially after any incident or regulatory change.
3. Distribute printed or digital SOPs on-site for easy access by workers and supervisors during operations.
4. Conduct regular internal audits of completed jobs to verify adherence to SOPs and permit conditions.
5. Use structured audit checklists covering job planning, documentation, tool condition, and worker training.
6. Document all audit findings, corrective actions, and timelines for resolution.
7. Encourage feedback from workers on the effectiveness of procedures and safety protocols to improve continuously.

By implementing these practices into your daily operations, you can create a safety culture where every worker is equipped, informed, and empowered to perform blinding and deblinding tasks with confidence and care.

Training & Competency

Training and competency are the backbone of safe blinding and deblinding operations.

These high-risk tasks demand more than just experience—they require a deep understanding of hazard identification, mechanical isolation techniques, and emergency procedures.

Without the proper training, even a small oversight can lead to pressure-related injuries, chemical exposure, or costly equipment failure.

Every worker involved in blinding or deblinding must be trained in:

1. Energy source identification (e.g., pressure, temperature, chemical, hydraulic)
2. Proper use of blinds including spades, spectacle blinds, and blind flanges
3. Lockout/Tagout (LOTO) steps and verification procedures
4. Gas monitoring and venting protocols
5. Flange spreader and torque tool operation
6. Containment practices during deblinding

Incorporating Job Safety Analysis (JSA) into every task helps workers think critically about each step, anticipate risks, and apply appropriate controls. JSAs should be reviewed in toolbox talks and signed off before work begins.

To build true confidence, teams should also participate in mock drills, simulating pressure release scenarios, emergency shutdowns, or gas detection alarms. These drills strengthen readiness and reinforce proper response habits.

Just as important as training is verification of competence. Workers must demonstrate that they can apply procedures safely—not just attend a course.

Supervisors or safety officers should assess each worker’s practical knowledge before assigning them to live blinding/deblinding tasks.

This is especially important in regulated Canadian industries like oil and gas, where safety compliance is legally enforced.

Ultimately, ensuring that only competent, trained personnel handle these tasks reduces risk, protects lives, and helps companies maintain a strong safety record.

Conclusion

Blinding and deblinding may appear straightforward, but they involve serious hazards like sudden pressure release, toxic gas exposure, and mechanical failure.

Without the right tools, training, and verification, even a routine task can result in injuries, environmental harm, or equipment damage.

These risks aren’t just theoretical—Canadian incident reports have shown that inadequate isolation continues to be a leading cause of maintenance-related accidents in high-risk industries.

The good news is that most of these incidents are preventable. By following systematic precautions—such as detailed job planning, proper tool inspections, hazard tagging, and documented permits—you significantly reduce the chances of something going wrong.

Independent verification is another crucial step, ensuring that no single point of failure goes unnoticed.

Now is a good time to review your blinding and deblinding procedures.

Are they written, accessible, and up to date with current CSA Z460 or OH&S regulations?

Are your workers trained, competent, and confident in their roles?

Is every blind installation verified before work begins?

Safety in isolation work doesn’t happen by chance—it happens by design. Reinvest in your team’s knowledge, enforce verification at every step, and treat every blind not as a formality but as a critical control measure that protects lives and assets.
