When it comes to fire safety and hazardous material handling, understanding a substance's tendency to ignite is essential: it is defined by precise, measurable temperatures.

The terms flash point, fire point, and ignition point are main concepts that dictate how we store, handle, and protect against flammable and combustible materials.

Confusing these terms can lead to catastrophic errors in safety planning, from improper storage that creates an explosion risk to inadequate fire suppression that fails to control a blaze.

These three distinct temperatures form a hierarchy of flammability risk, each marking a critical stage in a substance's journey from a stable liquid to a source of sustained fire.

For safety officers, chemical handlers, and facility managers, knowing the difference is not academic; it's the foundation of preventing workplace accidents, ensuring regulatory compliance, and saving lives.

This guide will clearly define each point, illustrate their differences with common examples like diesel and petrol, and explain their direct, practical implications for daily safety protocols.

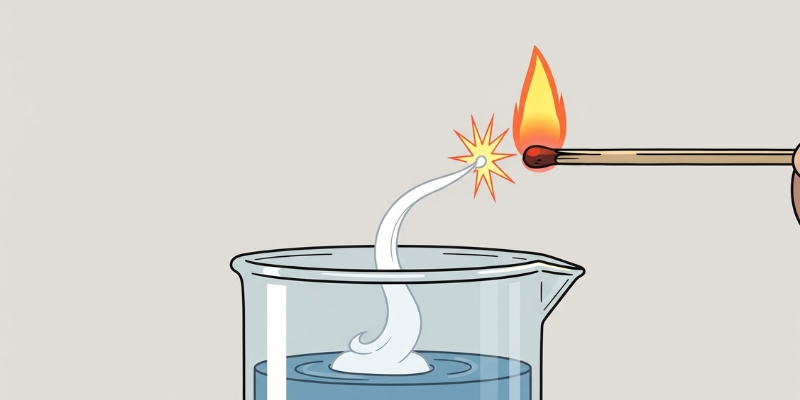

What is Flash Point?

The flash point is the lowest temperature at which a liquid can emit enough vapor to form an ignitable mixture with the air near its surface.

At this temperature, if an external ignition source like a spark, flame, or hot surface is introduced, the vapor will flash (ignite briefly) but may not sustain combustion once the ignition source is removed. It is the first and most critical warning sign of a material's flammability.

This measurement is necessary for classifying hazardous materials.

For instance, the flash point of petrol (gasoline) is exceptionally low, typically around -43°C (-45°F), explaining why it is so dangerously volatile even in cold conditions.

In contrast, the flash point of diesel is significantly higher, usually between 52°C and 96°C (126°F to 205°F), classifying it as a combustible rather than flammable liquid under many regulatory frameworks.

Common solvents like acetone (-18°C / 0°F) and ethanol (13°C / 55°F) also have low flash points, dictating strict handling procedures.

The practical importance of the flash point cannot be overstated. It directly influences:

1. Storage Requirements: Flammable liquids (low flash point) often require specialized, fire-resistant safety cabinets, while combustibles (higher flash point) have different standards.

2. Transportation Regulations: The classification based on flash point determines labeling, packaging, and placarding for shipping.

3. Area Classification: In facilities, areas where flammable vapors could be present are classified as hazardous (classified) locations, requiring explosion-proof electrical equipment.

Flash Point in Safety Protocols

Regulatory bodies like OSHA and the NFPA base entire frameworks on flash point data. It is the key determinant in the Globally Harmonized System (GHS) and WHMIS for hazard communication, signified by the flame pictogram.

Safety protocols, such as controlling ignition sources, implementing bonding and grounding to prevent static sparks, and ensuring adequate ventilation, are all designed to prevent conditions from reaching a substance's flash point.

Understanding a material's flash point through standardized testing is the first step in any fire risk assessment.

For a deeper dive into this critical test, explore our article on how flash point testing helps prevent fire.

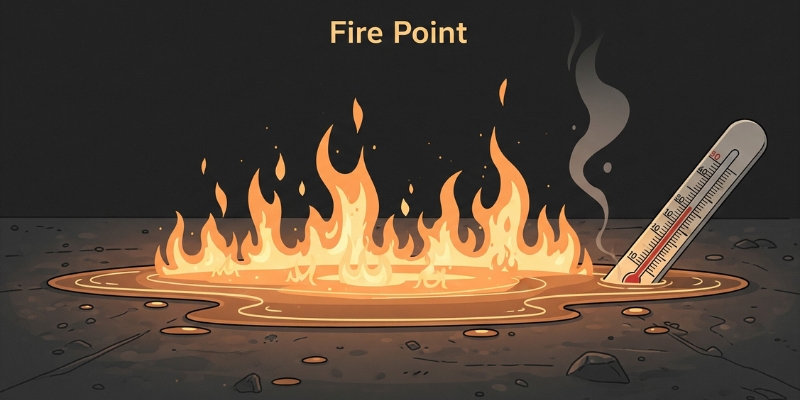

What is Fire Point?

The fire point is the temperature just above the flash point at which a liquid produces vapors at a rate sufficient to not just flash, but to sustain a continuous fire after ignition.

Once the external ignition source is removed at this temperature, the substance will continue to burn. Essentially, the fire point marks the threshold for self-sustained combustion.

For many common substances, the fire point is only 5°C to 30°C (9°F to 54°F) higher than the flash point.

For example, while diesel may flash at 52°C, its fire point might be around 68°C. This relatively small window between flash and fire point is why a momentary spark near a fuel spill can rapidly escalate into an uncontrollable blaze if the material is at or above its fire point.

This distinction is crucial for understanding fire behavior; a liquid at its flash point presents a severe ignition hazard, but a liquid at its fire point guarantees a spreading, continuous fire.

Fire Point in Fire Suppression

The concept of fire point is central to effective firefighting and suppression system design.

For a fire to be extinguished, the fuel must be cooled below its fire point to break the cycle of vapor production and combustion. This is why water is effective on Class A (solid) fires; it cools the fuel.

However, for flammable liquid (Class B) fires, simply blanketing the surface may not be enough if the liquid bulk temperature remains above its fire point; the fire can reignite.

This principle guides the use of foam agents, which create a vapor-sealing blanket, and dry chemical agents, which interrupt the chemical chain reaction.

Knowing a material's fire point helps engineers design suppression systems that can achieve and maintain the necessary cooling or sealing to ensure the fire does not restart.

What is Ignition Point?

The ignition point (also called auto-ignition temperature) is fundamentally different from both flash and fire point. It is the lowest temperature at which a substance will spontaneously ignite without any external flame, spark, or other ignition source.

At this temperature, the material's own chemical energy is sufficient to initiate combustion through heat alone.

The auto-ignition point is almost always significantly higher than both the flash and fire points. For example:

Petrol (Gasoline): Flash Point ~ -43°C (-45°F) | Auto-ignition Point ~ 280°C (536°F)

Diesel Fuel: Flash Point ~ 52-96°C (126-205°F) | Auto-ignition Point ~ 210°C (410°F)

This high temperature is why a match can ignite gasoline vapors, but you can't typically ignite a pool of gasoline by heating it to 150°C; you need to reach its much higher auto-ignition temperature.

Common hazards associated with auto-ignition include oily rags (where heat from oxidative decomposition builds up), overheated machinery, and dust clouds in industrial settings.

Ignition Point in Safety Practices

Managing auto-ignition risks requires proactive control of environmental heat. Key safety practices include:

1. Controlling Surface Temperatures: Ensuring machinery, steam lines, and electrical equipment do not exceed the auto-ignition temperature of nearby materials.

2. Safe Disposal of Reactive Waste: Storing oily rags, coal, or other self-heating materials in approved, vented metal containers to dissipate heat.

3. Preventing Dust Accumulation: Implementing rigorous housekeeping to prevent combustible dust (flour, wood, metal) from accumulating on hot surfaces like light fixtures or motors.

4. Maintaining Clearance from Hot Work: Establishing safe distances for welding, grinding, and cutting operations from areas containing flammable materials.

Comparing Flash Point, Fire Point, and Ignition Point

The table below provides a clear, side-by-side comparison of these three critical flammability thresholds:

Real-World Scenario: Consider a diesel fuel spill in a machinery room.

If the ambient temperature is below 52°C, the flash point is not reached, and the vapors are too lean to ignite; primary risk is slip/smell.

If a hot engine component heats the spill to 70°C (above its fire point), and a spark occurs, a sustained fire will start.

If another component fails and reaches 250°C, exceeding the ignition point, the diesel could spontaneously ignite even without a spark.

Practical Implications for Safety and Storage

Integrating knowledge of these three points creates a robust, multi-layered defense against fire. Their combined data informs every aspect of safety management:

1. Chemical Storage & Handling: Flammable liquids (low flash point) are segregated and stored in approved cabinets away from heat. Safety Data Sheets (SDS) in Section 9 (Physical & Chemical Properties) list the flash point, guiding these decisions.

2. Workplace Design & Controls: In areas where flammable materials are used, engineering controls like ventilation prevent vapor accumulation (controlling flash point risk). Equipment is chosen with surface temperatures kept below relevant auto-ignition points.

3. Emergency Preparedness & Response: The fire point informs the selection of appropriate fire extinguishers. Knowing a material's behavior helps firefighters predict if cooling alone will be effective or if vapor suppression is needed. Comprehensive fire extinguisher training is essential so personnel understand which agent to use on which type of fire.

4. Regulatory Compliance: Standards like the NFPA 30 Flammable and Combustible Liquids Code and OSHA regulations (29 CFR 1910.106) are built upon these definitions. Compliance is impossible without accurately classifying materials based on their flash point.

Ultimately, employee fire safety training is the foundation.

Workers who handle these materials must understand why certain rules exist: why bonding/grounding is needed (flash point), why certain extinguishers are specified (fire point), and why housekeeping for oily rags is mandatory (ignition point).

Conclusion

Understanding the precise hierarchy of flash point vs. fire point vs. ignition point is a non-negotiable element of professional fire safety and hazard management. These are not interchangeable terms but distinct, sequential milestones on the path to combustion.

The flash point warns of initial ignition danger, the fire point defines the conditions for a sustained blaze, and the ignition point alerts us to the hidden danger of spontaneous combustion.

This knowledge transforms safety protocols from a list of arbitrary rules into a logical, science-based system for protecting people, property, and the environment.

By applying these principles, through proper storage informed by flash points, effective suppression systems designed around fire points, and diligent thermal management to prevent reaching auto-ignition points, organizations can systematically de-risk their operations.

Make these concepts the foundation of your safety culture, ensure your team is trained to understand them, and always verify the properties of the materials you work with. In fire safety, what you don't know can most definitely hurt you.
